OPTIONAL EQUIPMENT

SF-S56 20-bin staple sorter

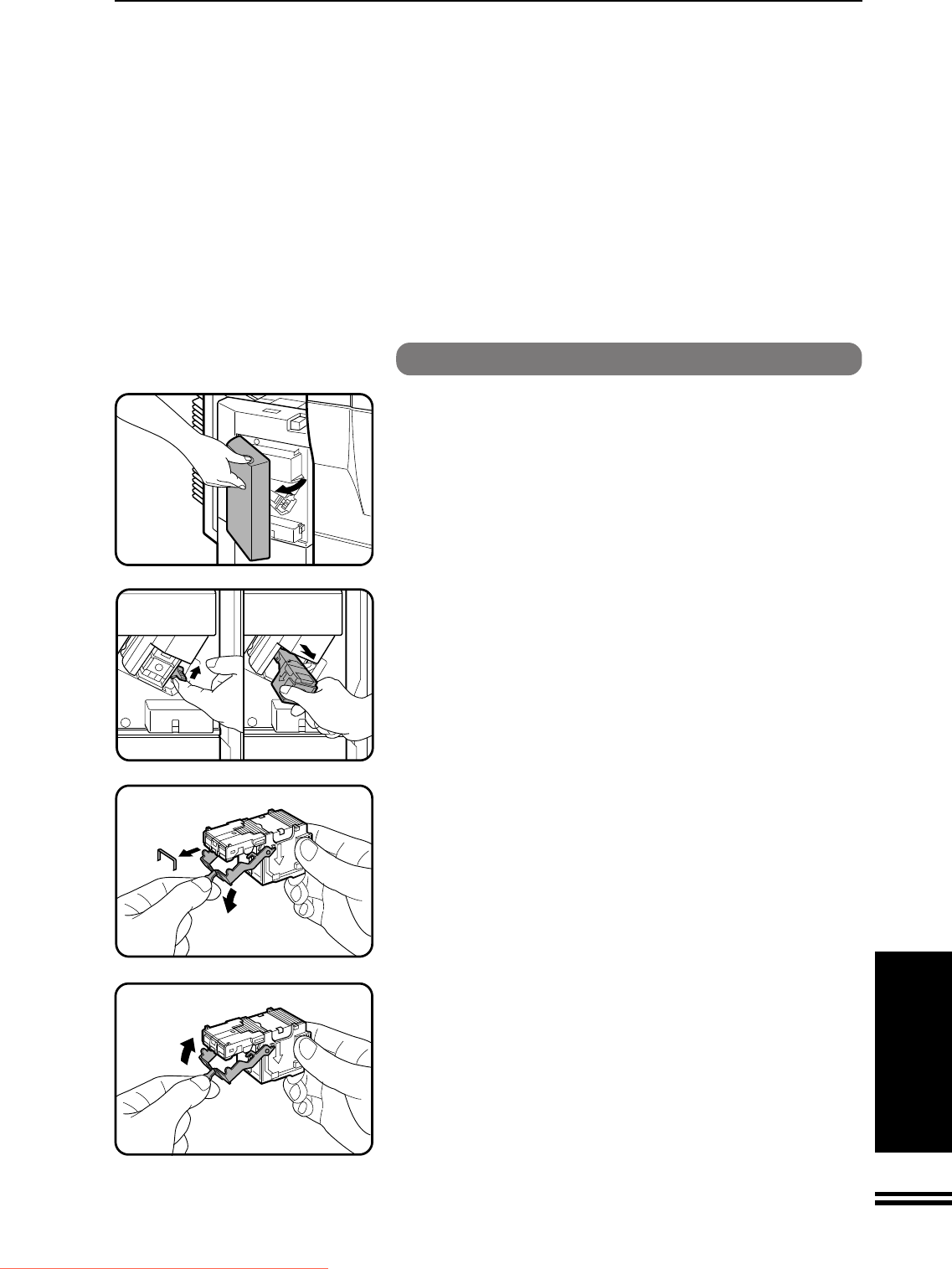

Open the stapler cover.

Lift the release lever and pull out the staple box.

●

Lift the release lever to unlock the staple box. Then pull out the

box.

Lower the lever at the end of the staple box and remove

the jammed staples.

Return the lever to its original position.

20-BIN STAPLE SORTER (SF-S56)

20-bin staple sorter (SF-S56)
