REPLACING THE STAPLE CARTRIDGE

FINISHER (FOR MX-M850) / SADDLE STITCH FINISHER

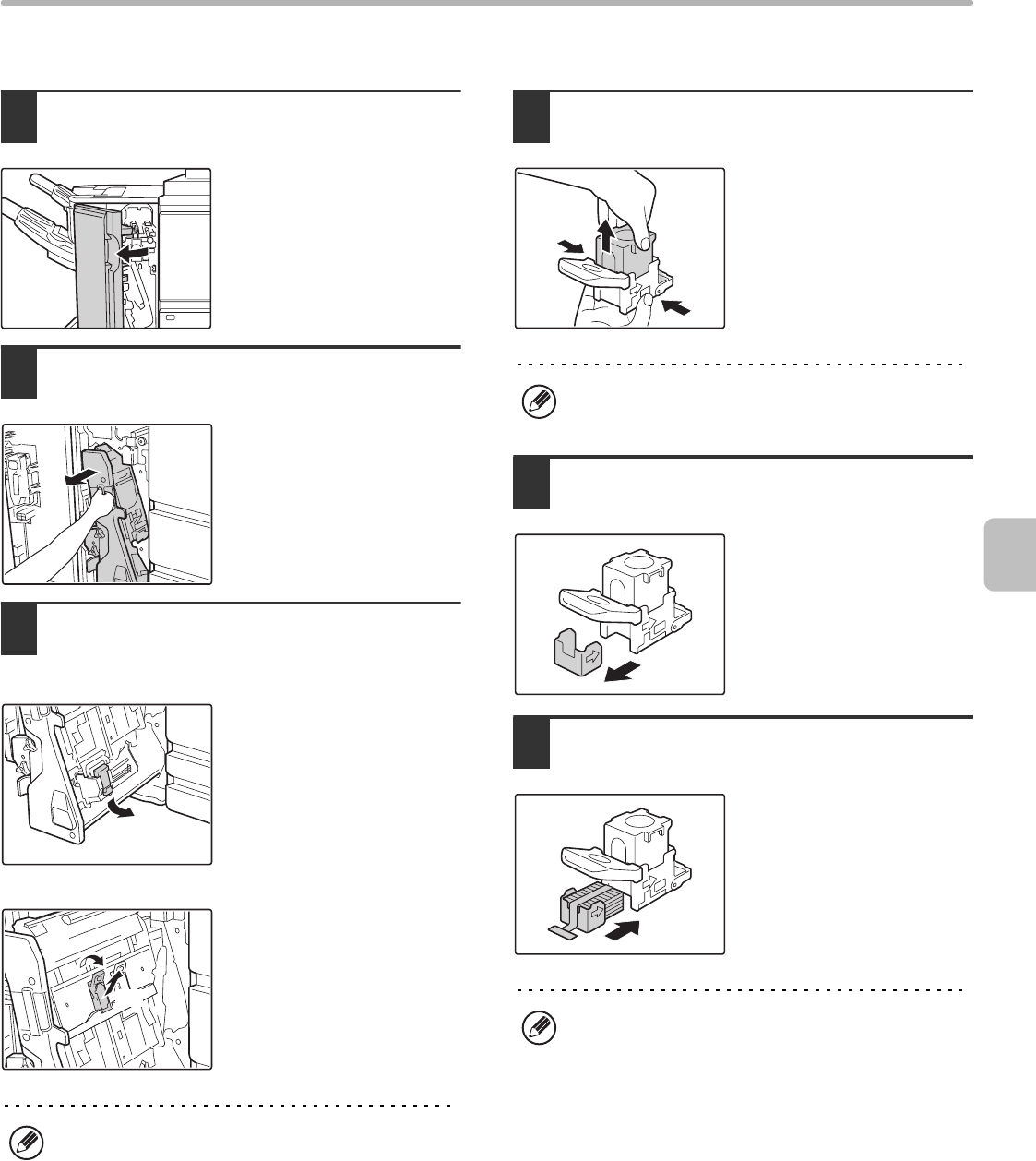

Open the cover.

Pull out the unit.

Slowly pull out the unit until it

stops.

Remove the staple case.

Staple section

Grasp the green part of the

staple case and pull the staple

case down.

Saddle stitch section

(1) Grasp the green part and

pull it forward and down.

The unit that holds the

staple case will move

forward.

(2) Pull the staple case up

and out.

Release the staple case cover lock.

While holding both sides of the

staple case, pull up the upper

unit.

Remove the staple cartridge.

Install a new staple cartridge.

Push the staple case in until it

clicks into place.

In the saddle stitch section, replace the cartridges in

the front and back staple cases (two cartridges).

(1)

(2)

When staples remain, the lock cannot be released.

Do not remove the seal from the cartridge before

inserting the cartridge into the case.
