FINISHER AND SADDLE STITCH FINISHER
3-9
3
■
■■

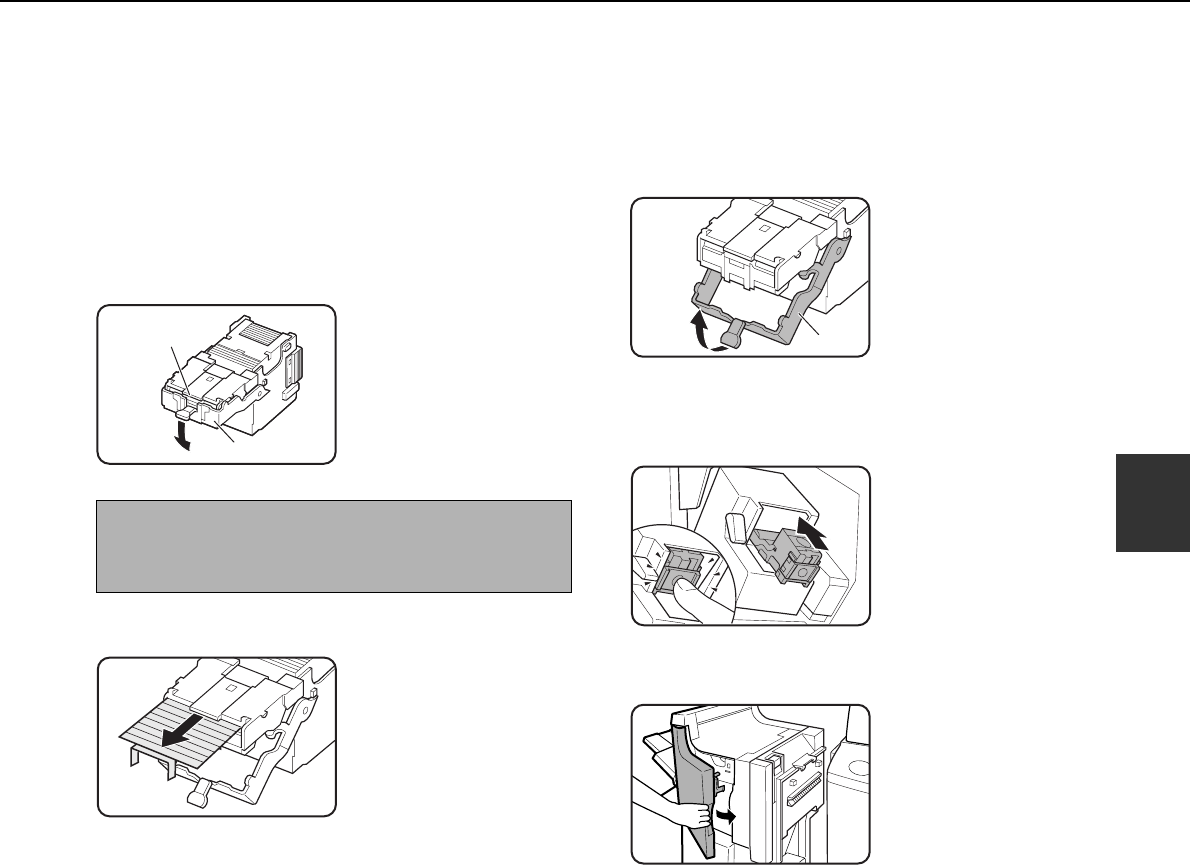

■ Removing a staple jam in the finisher
1
Perform steps 1 to 2 of the procedure for
"Replacing the cartridge in the finisher"
on page 3-7.
2
Holding the knob, lower part (A).
3
Remove any jammed staples.
4
Holding the knob, return part (A) to its
original position.
5
Return the staple case to its original
position.
Insert the cartridge all
the way in until it clicks
into place.
6
Close the front cover of the finisher.
NOTE
Do not touch the stapling area.
The stapler could injure you.
(A)
Stapling area
(A)
