7-15
CHAPTER7
OPTIONAL EQUIPMENT
Finisher (AR-FN3)
FINISHER (AR-FN3)
3

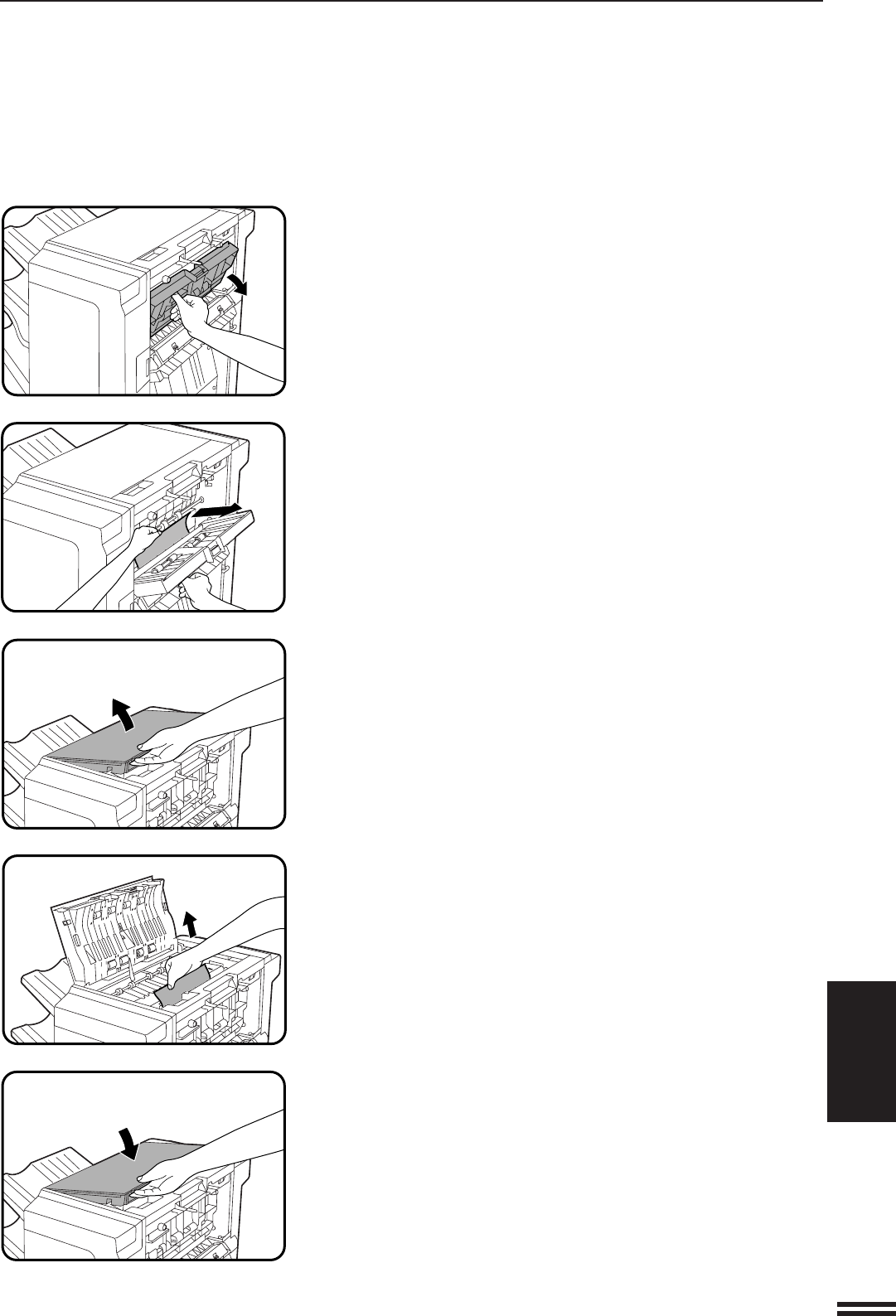

If the misfed paper cannot be removed in step 2, open
the cover of the paper feed area of the finisher.
4
Remove the misfed paper.
5
If the misfed paper cannot be removed in step 4, close
the cover of the paper feed area and open the top cover.
6
Remove the misfed paper.
7
Close the top cover.
