7-8
CHAPTER7
Using the document glass

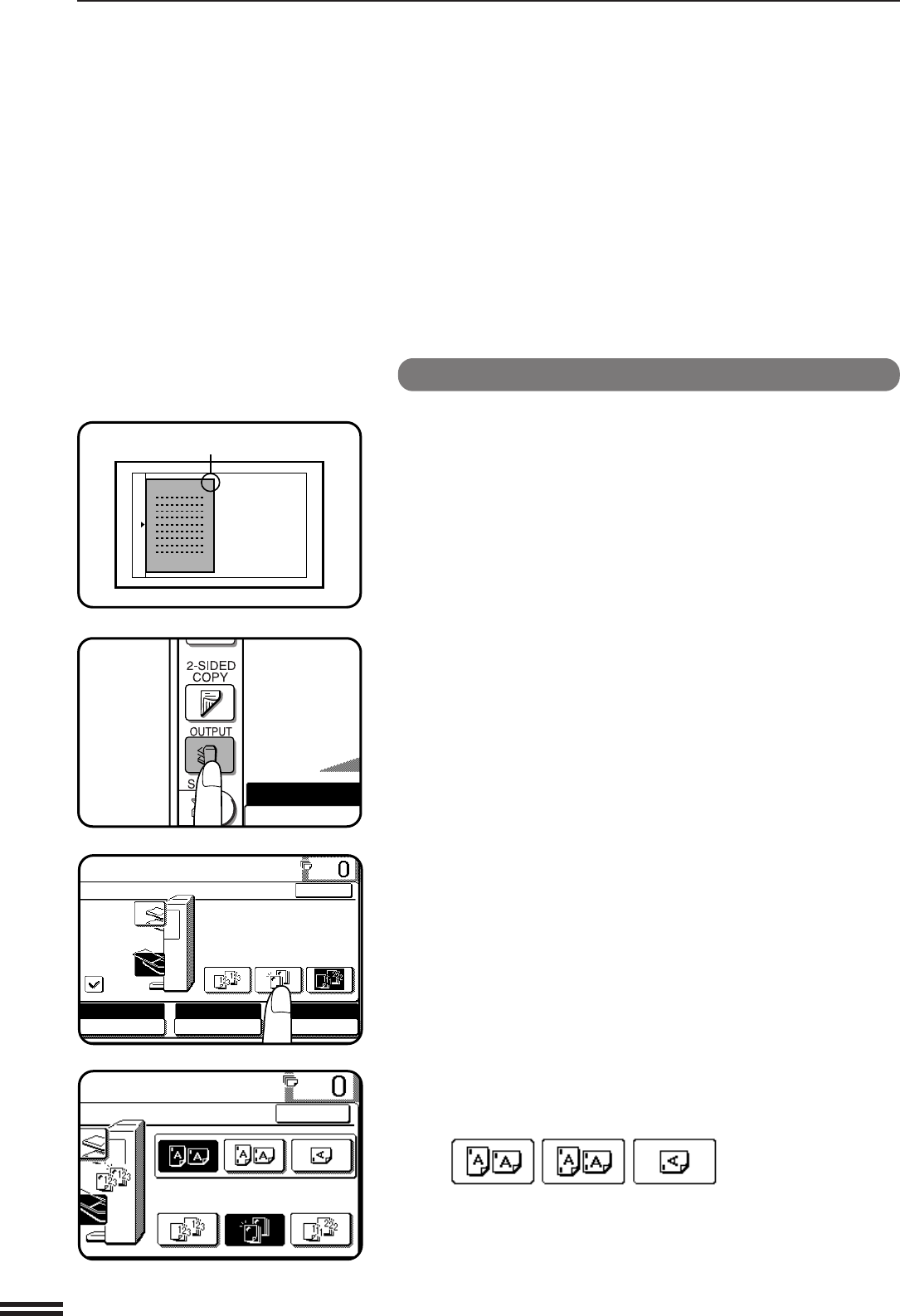

1
Set the original on the document glass with the corner
to be stapled to the upper right.
●
Copy from the last page to the first page.
●
If the number of copies in one set is more than 50 for
A4 or A4R (8-1/2" x 11" or 8-1/2" x 11"R) paper or 25 for B4 or
A3 (8-1/2" x 14" or 11" x 17") paper, the copies will not be
stapled.
●
The stapling position shown in the left figure is the factory de-
fault position.
2
Press the OUTPUT key.
3
Press the “STAPLE SORT” key on the touch panel.
4
Select the desired stapling position.
●
The AR-FN3 finisher has three selectable stapling positions as
shown below.
Stapling position
AUTO
EXPOSURE
OPTIONAL EQUIPMENT
Finisher (AR-FN3)
FINISHER (AR-FN3)
OPY.
SORT
STAPLE
SORT GROUP
OK
READY TO COPY.
OUTPUT
TOP TRAY
OFFSET
SORT
OFFSET
TRAY
STAPLE
SORT GROUP
OK
AUTO
EXPOSURE PAPER SELECT
100%
COPY RATIO
AUTO
A4
