7-14
CHAPTER7
OPTIONAL EQUIPMENT
Finisher (AR-FN3)
FINISHER (AR-FN3)

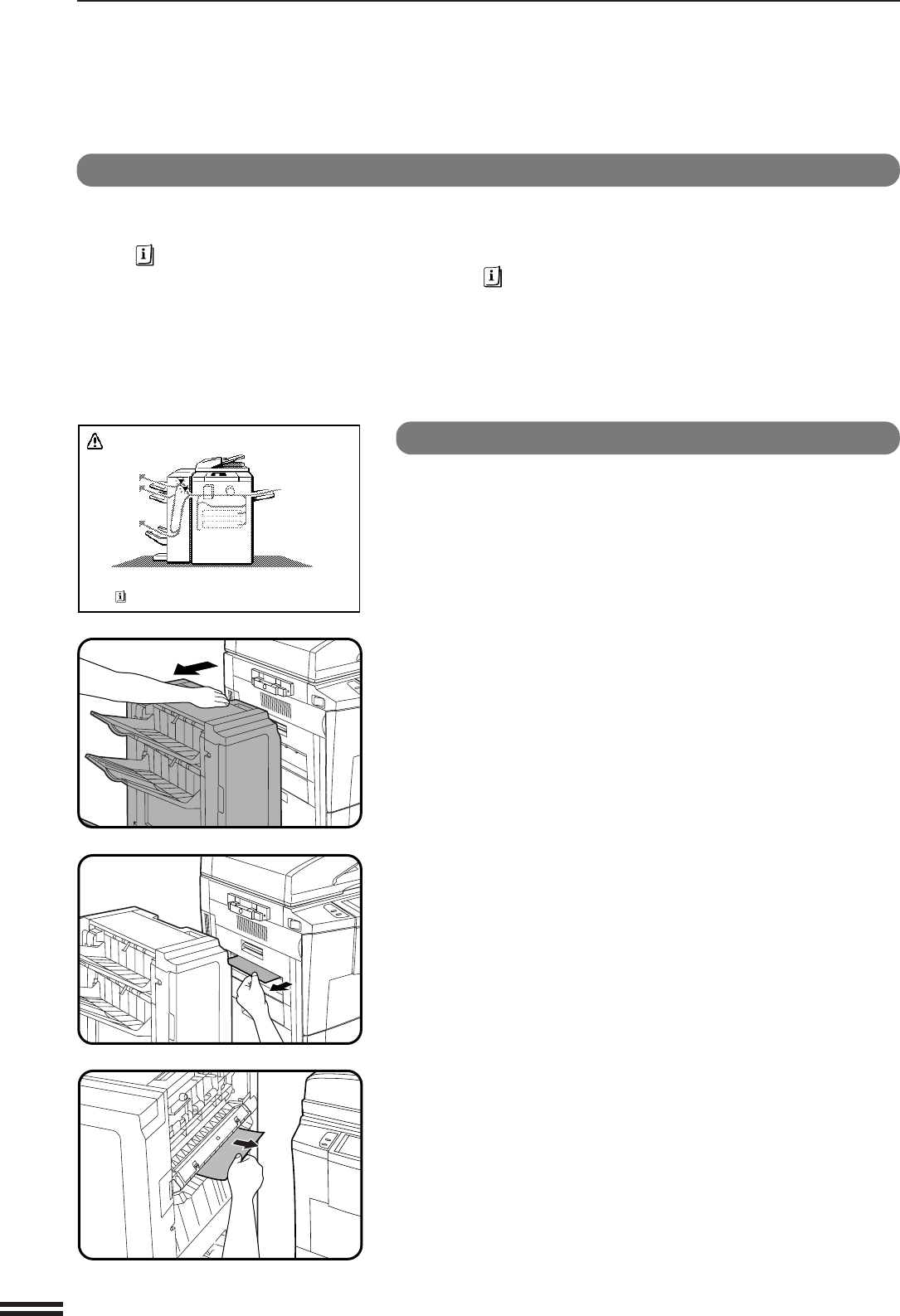

Misfeed removal
The copier will stop when a misfeed occurs.
The message “A MISFEED HAS OCCURRED. CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.” will appear with a display
of paper misfeed locations. Press the INFORMATION ( ) key for more
detailed information as necessary.
SF-S15 20-bin sorter
Misfeed in the upper transport area
1
While holding the finisher release lever, slide the finisher
away from the copier.
2
Remove the misfed paper.
●
If the misfed paper is visible at the copier exit area, remove it and
then open and close the front cover to cancel the misfeed
display.
A MISFEED HAS OCCURRED.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
