REDUCTION/ENLARGEMENT/ZOOM
4-16
Manual selection (preset copy ratios/zoom)
Five preset enlargement and five preset reduction copy ratios (max. 400%, min. 25%) can be selected. In addition,
the zoom keys can be used to select any ratio from 25% to 400% in increments of 1%.
<The administrator settings on page 16 of the administrator settings guide can be used to set two additional
enlargement ratios and two additional reduction ratios.>
1
Place the original in the document feeder
tray or on the document glass. (pages 4-3
to 4-6)
2

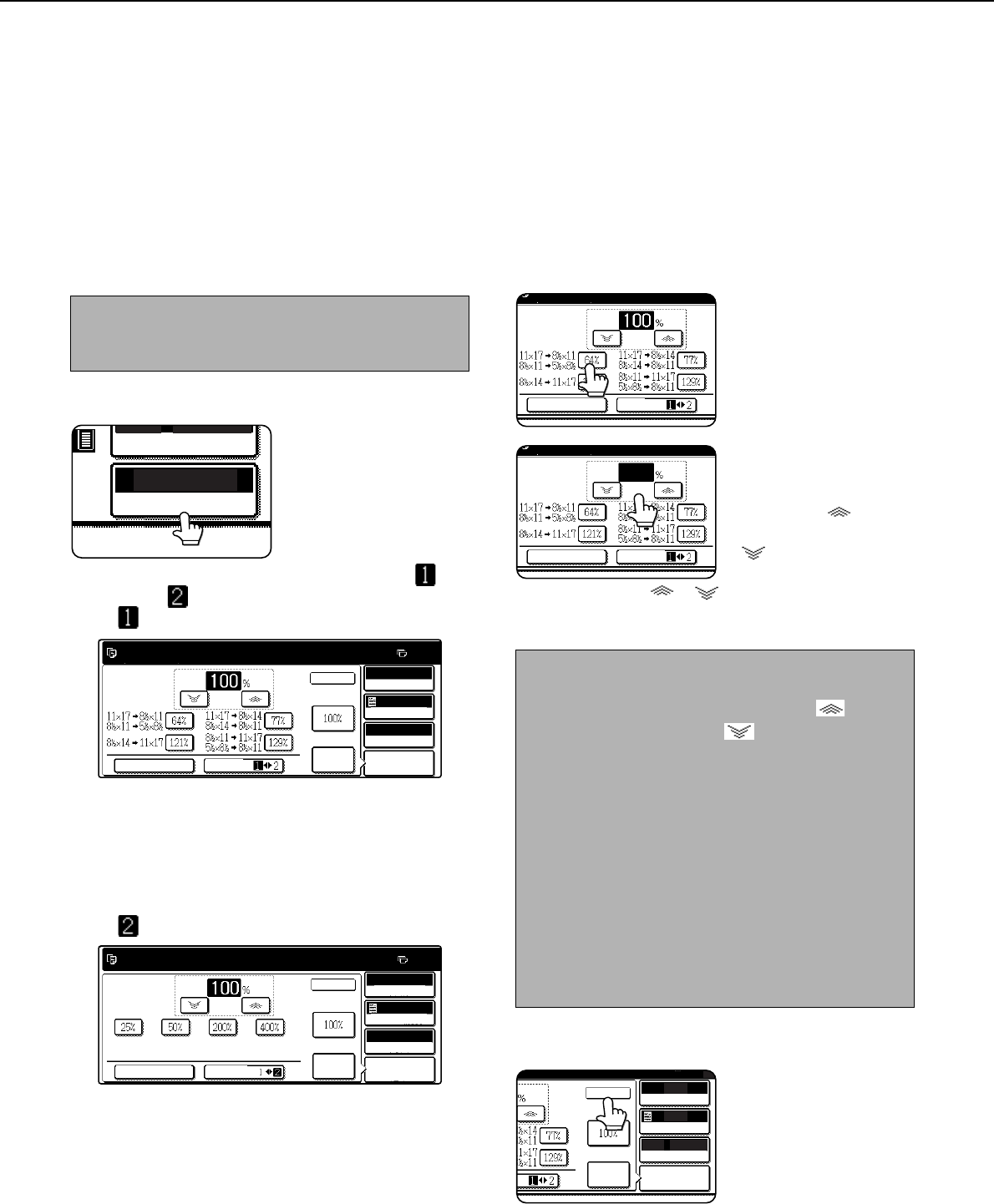

Touch the [COPY RATIO] key.
3
Use the [MENU] key to select menu " " or
menu " " for copy ratio selection.
Menu
●A.Preset reduction copy ratios are:
77% and 64% (for the inch system).
70%, 81% and 86% (for the AB system).
●
B.Preset enlargement copy ratios are:
121% and 129% (for the inch system).
115%, 122% and 141% (for the AB system).
Menu
●A.Preset reduction copy ratios are:
50% and 25%.
●B.Preset enlargement copy ratios are:
200% and 400%.
(The custom ratios set by the administrator appear
in ratio menu 2.)
4
Use the reduction, enlargement, and
[ZOOM] keys on the touch panel to set the
desired copy ratio.
Zoom ratios: Any ratio
from 25% to 400% can
be set in 1% increments.
Touch the [ ] key to
increase the ratio, or the
[ ] key to decrease
the ratio. (If you continue
to touch the [ ]/[ ] key, the ratio will change
automatically. After 3 seconds, the ratio will
change rapidly.)
5
Touch the [OK] key.
NOTE
When the original is placed in the document feeder,
the ratio can be set from 25% to 200%.
AUTO
100%
8 X11
/
2
PAPER SELECT
COPY RATIO
AUTO
AUTO
AUTO 8 x11
ORIGINAL
PAPER SELECT
COPY RATIO
AUTO
EXPOSURE
0
XY ZOOM
MENU
ZOOM
READY TO SCAN FOR COPY.
OK
1
/
2
AUTO
AUTO
AUTO
8 x11
ORIGINAL
PAPER SELECT
COPY RATIO
AUTO
EXPOSURE
0
XY ZOOM
OK
MENU
ZOOM
1
/
2
NOTES
● Touch a reduction or enlargement key to set the
approximate ratio, then touch the [ ] key to
increase the ratio or the [ ] key to decrease the
ratio.
● Automatic changing of the ratio when a zoom key
is continuously touched can be disabled in the
administrator settings (see "Key operation setting
(prohibit key repeat)" on page 10 of the
administrator settings guide).
● If the message "IMAGE IS LARGER THAN COPY
PAPER." appears when a ratio is selected, the
image may not fit on the copy paper.
● To set the horizontal and vertical copy ratios
separately, use the XY ZOOM feature. See page
4-18.
XY ZOOM
MENU
ZOOM
XY ZOOM
MENU
ZOOM
64
AUTO
AUTO
AUTO 8 x11
ORIGINAL
PAPER SELECT
COPY RATIO
AUTO
EXPOSURE
0
IO
OK
1
/
2
