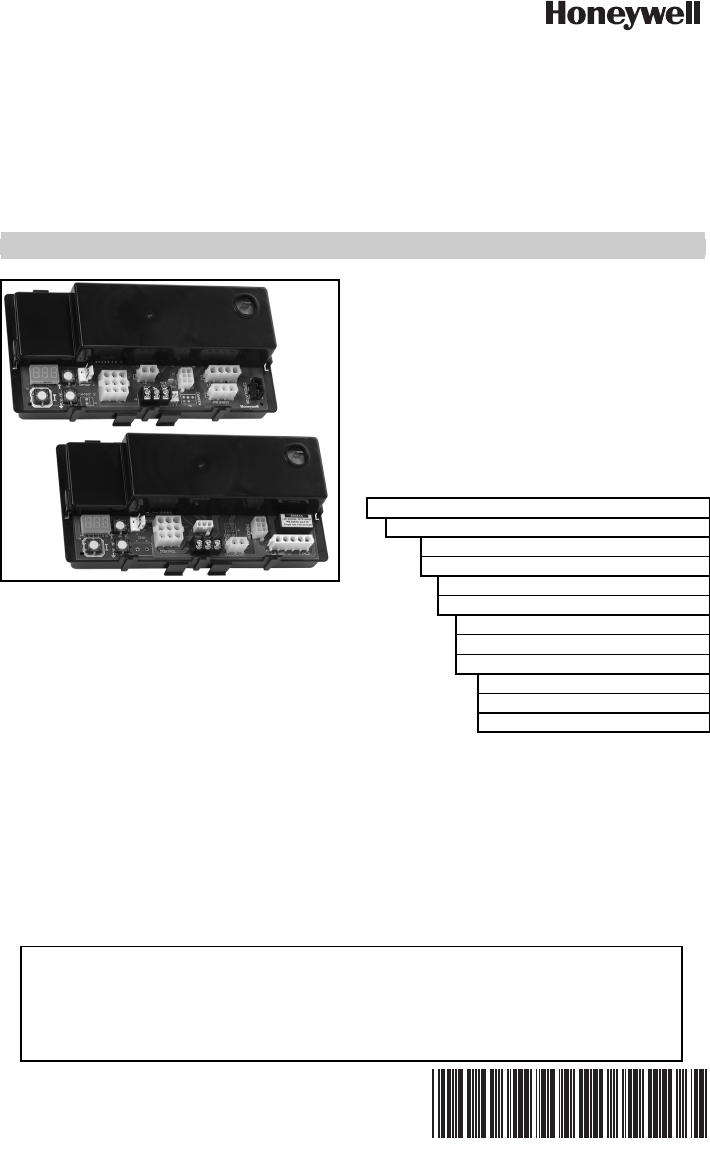

INSTALLATION INSTRUCTIONS66-1203-03S9360A, S9361A, S9380A, S9381A Integrated Boiler ControllersAPPLICATIONThese integrated boiler control modules prov

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 10State Code DefinitionsFor induced draft - state codes from 1–17;For atmospher

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS11 66-1203—03Temperature ControlTemperature control setpoint on the module can be adjusted

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 12Integrated Boiler Control Model DisplaysSee Table 6 for the IBC display scree

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS13 66-1203—03Mounting Sensor and ThermowellThe remote upper temperature sensor is installe

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 14Fig. 11. Operating Sequence.Table 7. Thermal Purge Settings.Parameter name Mi

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS15 66-1203—03TROUBLESHOOTINGIMPORTANT1. The following service procedures are provided as a

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 16Table 8. Error Codes.Segment Display DefinitionErr 2Pressure Switch failed to

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS17 66-1203—03Fig. 12. Examples of unsatisfactory pilot flames.LAZY YELLOW FLAMEWAVING BLUE

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 18

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS19 66-1203—03

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 2Dimensions:See Fig. 1.Fig. 1. S936X Integrated Boiler Controller, dimensions i

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERSAutomation and Control SolutionsHoneywell International Inc.1985 Douglas Drive NorthGolden

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS3 66-1203—0314,000,485-016 1/4 in. (6.35 mm) diameter, 1-1/4 in.(31.75 mm) length glass ca

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 4INSTALLATION AND CHECKOUTWhen Installing This Product…1. Read these instructio

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS5 66-1203—03Fig. 2. Recommended slot/hole pattern in appliance (in mm).Fig. 3. Align modul

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 6WIRINGWARNINGElectrical Shock Hazard.Can cause severe injury, death or propert

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS7 66-1203—03Wiring DetailFig. 4. Spark-to-Pilot Ignition Wiring (S936X), 2-rod (separate i

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 8Fig. 5. Direct Spark Ignition (DSI) Wiring (S938X), 1-rod (combined ignitor an

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS9 66-1203—03Fig. 6. Spark to Pilot Ignition (S936X), 1-rod (combined ignitor and sensor).M
