4. STARTUP
4 - 16

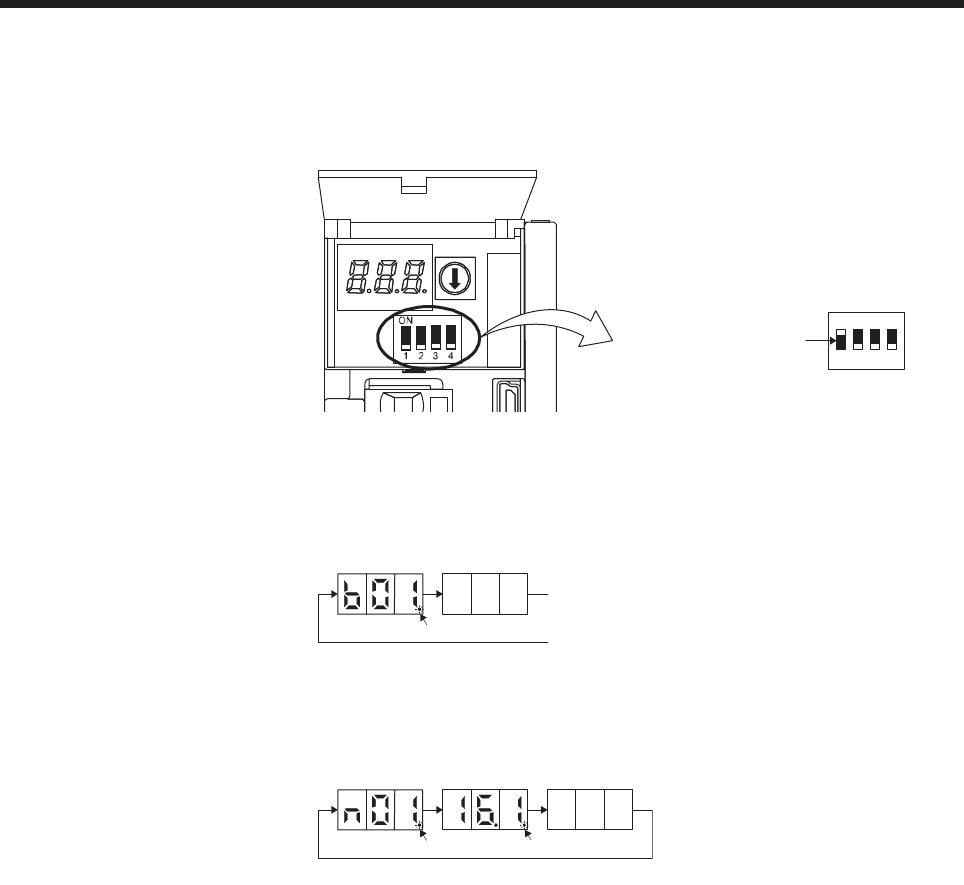

(2) Operation procedure
1) Turn off the power.
2) Turn "ON (up)" SW2-1.
SW2-1ࠍ"ࠝࡦ()"ߦ⸳ቯ
1
ON
2 3 4
Turning "ON (up)" SW2-1 during power-on will not start the test operation mode.
3) Turn on the servo amplifier.
When initialization is completed, the decimal point on the first digit will flicker.
1.6⑽ᓟ
0.2⑽ᓟ
ὐṌ
When an alarm or warning also occurs during the test operation, the decimal point on the first
digit will flicker as follows.
0.8⑽ᓟ 0.8⑽ᓟ
0.2⑽ᓟ
ὐṌ ὐṌ
4) Start operation with the personal computer.
Set SW2-1 to "ON (up)".
After 1.6 s
Flickering
After 0.2 s
After 0.8 s
After 0.8 s
Flickering
Flickering
After 0.2 s
