8-6 User’s Guide

Tray module (A4/Letter, 550 sheets)

Accessories

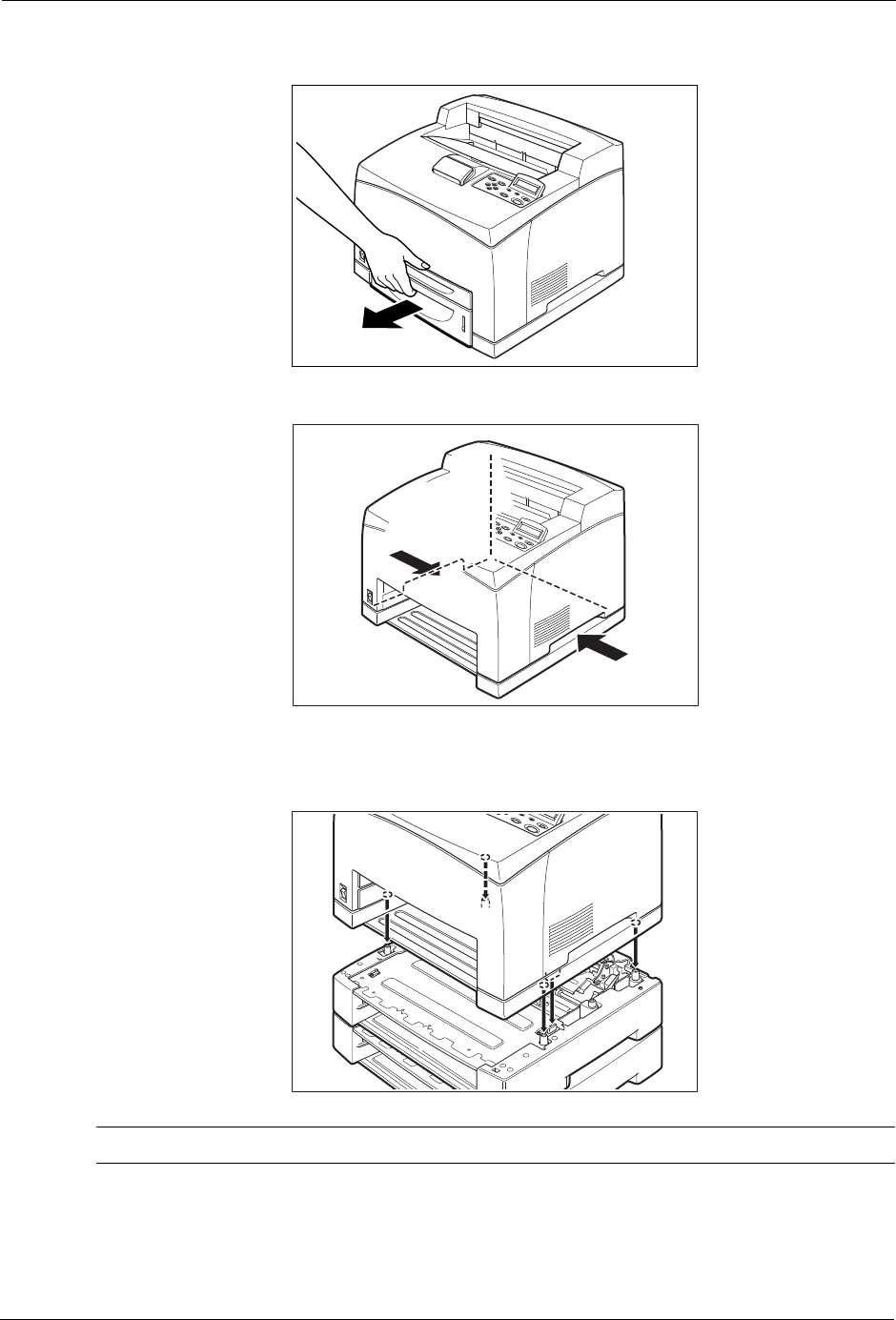

8. Pull the paper tray out of the printer.

9. Lift up the printer by holding the recessed areas as shown in the diagram.

10. Align the corners of the printer and the tray modules, and lower the printer gently so that

the guide pins at the 4 corners of the tray modules fit into the holes at the base plate of the

printer.

NOTE: The printer must be lowered gently. Otherwise, the interior parts may be damaged.
