2-40
PRINTING
IMAGE ADJUSTMENT FUNCTION
ADJUSTING THE BRIGHTNESS AND CONTRAST OF
THE IMAGE (Image Adjustment)
(This function is only available in Windows.)
The brightness and contrast can be adjusted in the print settings when printing a photo or other image. These settings
can be used for simple corrections when you do not have image editing software installed on your computer.
(This function is not available when using the PCL5e printer driver.)

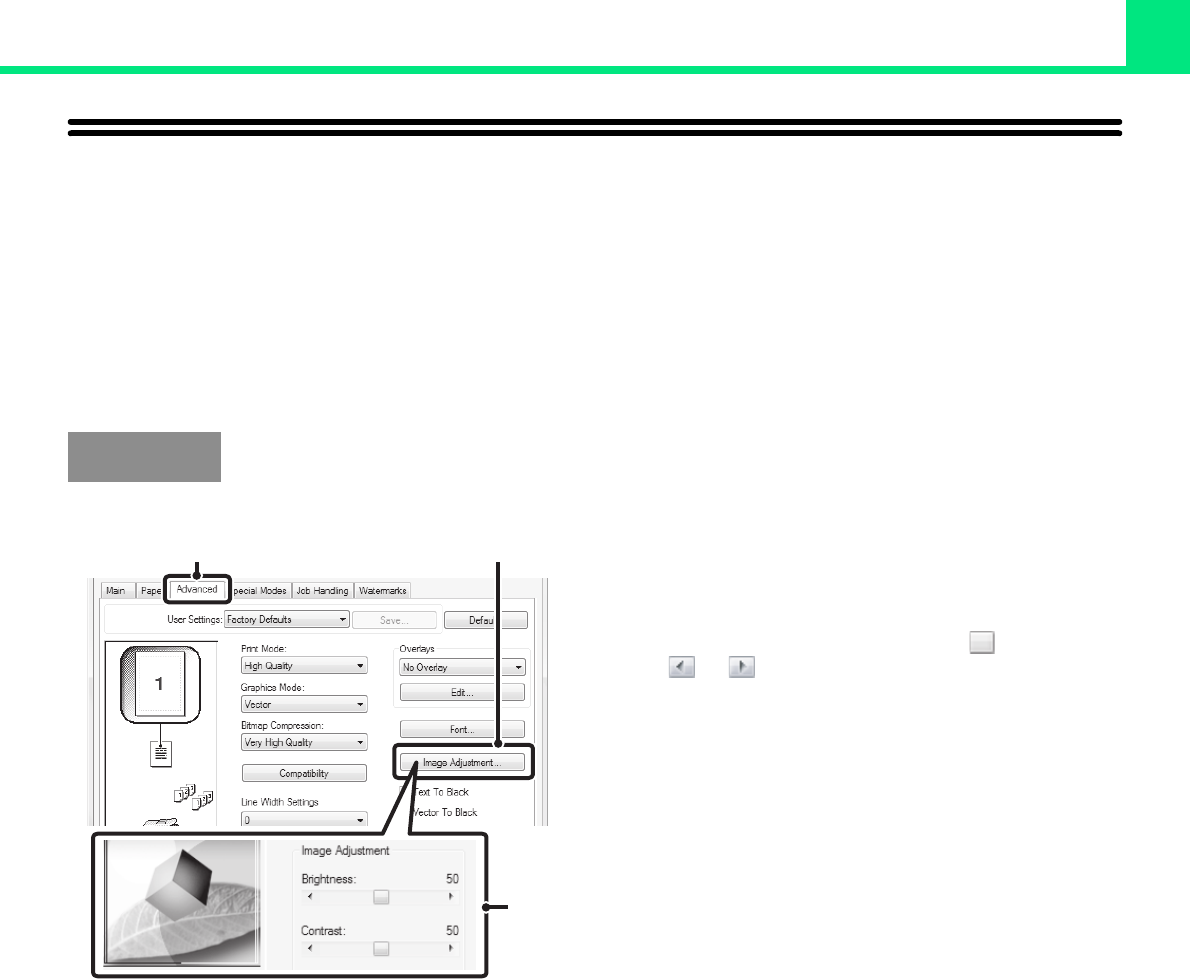

(1) Click the [Advanced] tab.
(2) Click the [Image Adjustment] button.
(3) Adjust the image settings.
To adjust a setting, drag the slide bar or click the
or button.
Windows
(1) (2)
(3)
