In this case, use both the hexagonal socket-head button bolt (M8 x 18) and the washer supplied with the

PDA-4002. If the PDK-4005 is tightened using the hexagonal socket-head button bolt (M8 x 14) supplied

with the PDK-4005, the screw is too short to provide sufficient strength. To ensure safe operation, use the

M8 x 18 bolt.

Hexagonal socket head

button bolt (M8 x M18)

(supplied with the PDA-

4002)

How to mount standard optional items (PDA-4001 • PDA-4002)

4.13.3 Mounting the PDP bracket (PDK-4005) with PDA-4002 mounted

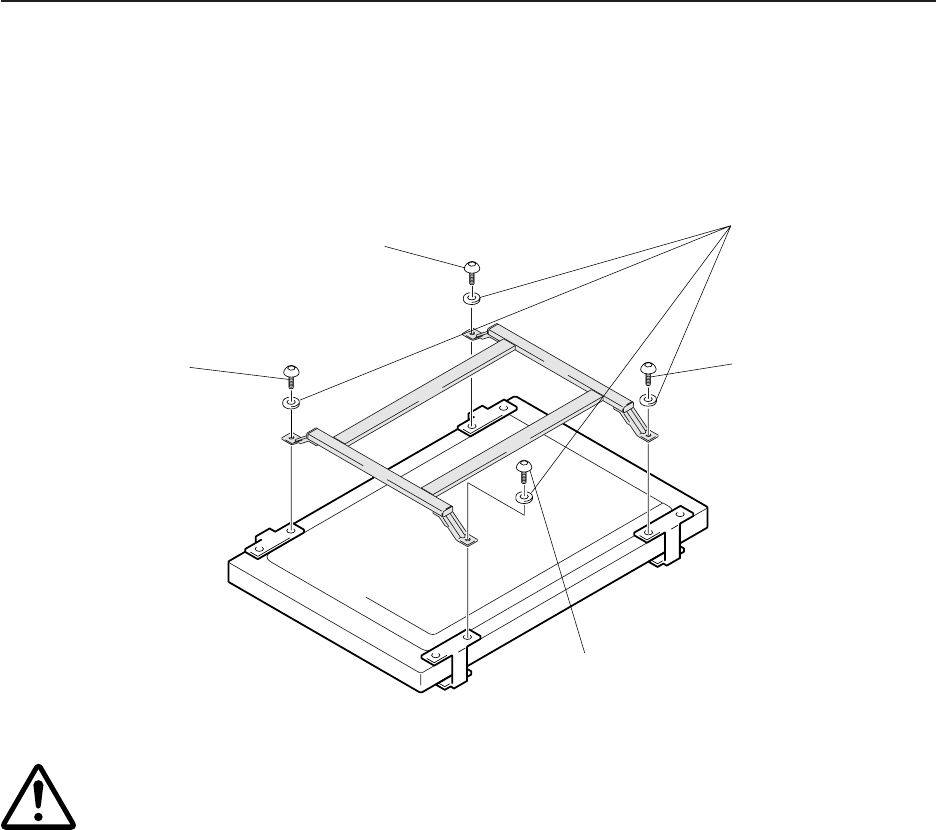

To attach the PDP bracket (PDK-4005) with the PDA-4002 mounted, tighten along with the filter-supporting metal

fixture, as shown below.

Caution

Hexagonal socket head

button bolt (M8 x M18)

(supplied with the PDA-

4002)

Hexagonal socket head

button bolt (M8 x M18)

(supplied with the PDA-

4002)

Hexagonal socket head

button bolt (M8 x M18)

(supplied with the PDA-

4002)

M8 wave washers

(supplied with the

PDK-4005)
