Loading Printing Paper
26
2

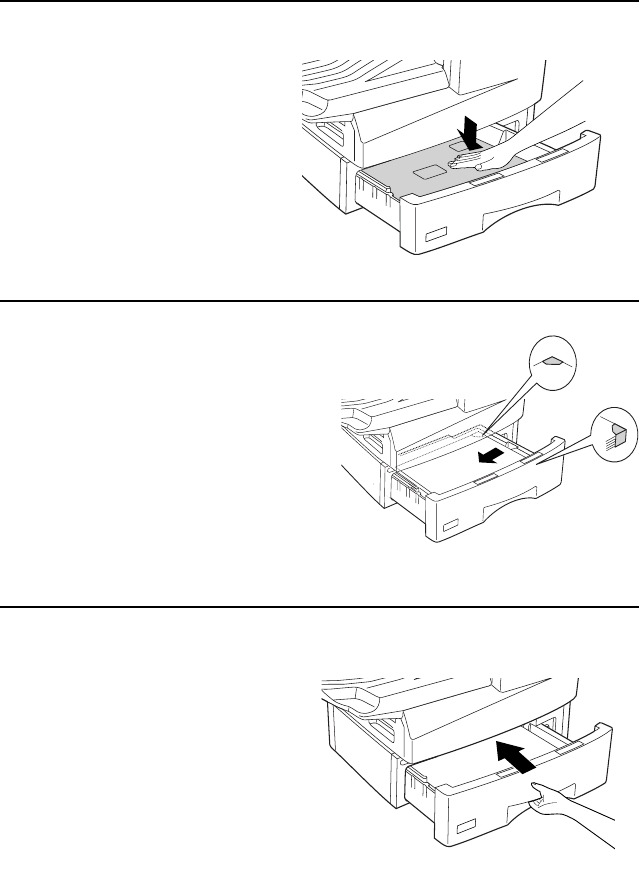

Push the pressure plate down until it
locks into position.
3
Place a stack of paper in the cassette,
print side up.
• Make sure the stack of paper is not
higher than the two tabs on the
green paper guide and the metal
tab. If it is, remove some of the
paper.
4
Push the cassette back into the
machine, making sure it clicks into
place.
all-FO4700.book Page 26 Friday, June 11, 1999 1:57 PM
