SADDLE STITCH FINISHER
3-13
3

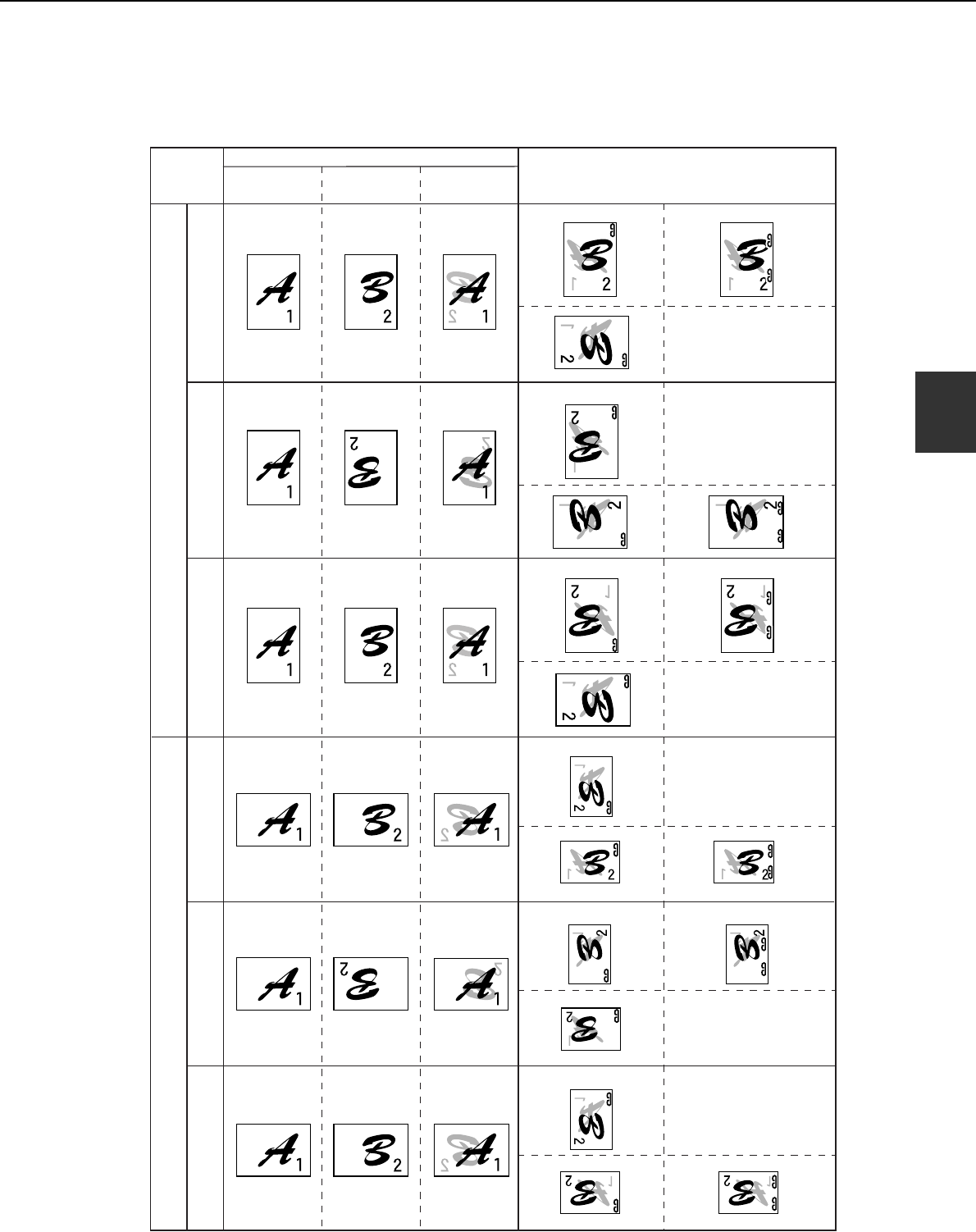

Stapling position quick reference guide for duplex output
The orientation of the copy paper, original, scanned original data, and binding position selection are all interrelated.
The table below shows these relationships.
Orientation of original or original data
Output result
Page 1 Page 2
Page 1 & Page 2
Duplexed
One-position stapling Two-position stapling
One-position stapling Two-position stapling
One-position stapling Two-position stapling
Two-position staplingOne-position stapling
One-position stapling
One-position stapling
Left binding with two-position
stapling is not possible.
Right binding with two-
position stapling is not
possible.
Top binding with two-position
stapling is not possible.
Two-position stapling along
the shorter edge is not
possible.
Two-position stapling along
the shorter edge is not
possible.
Two-position stapling along
the shorter edge is not
possible.
Right binding
Right binding
Top binding
Top binding
Left binding
Left binding
Portrait orientation printing
Landscape orientation printing
