Every filter position in the wheel is defined by the index hole. The hole

defining the first position is preceded by another hole.

Older versions of G2 cameras (revisions 1 and 2) have a filter wheel of 98 mm

diameter, later versions (revisions 2 and 3) use filter wheels of 95.5 mm

diameter. Filter numbering is illustrated by the following pictures:

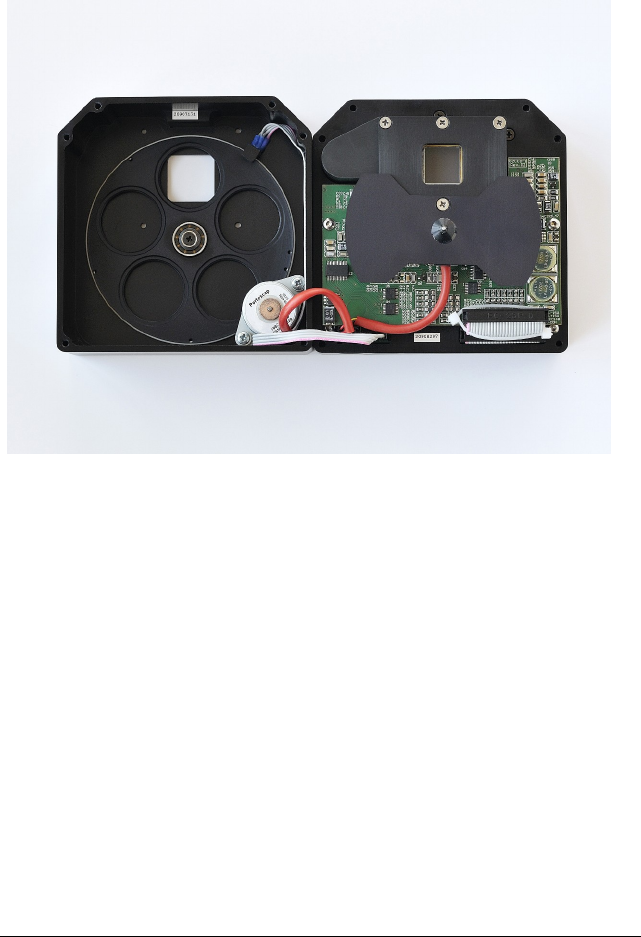

Illustration 28: Filters can be changed after opening the camera case front shell
