3-82 ColorWise Pro Tools

Sharp AR-C360P EFI Color Guide - 82

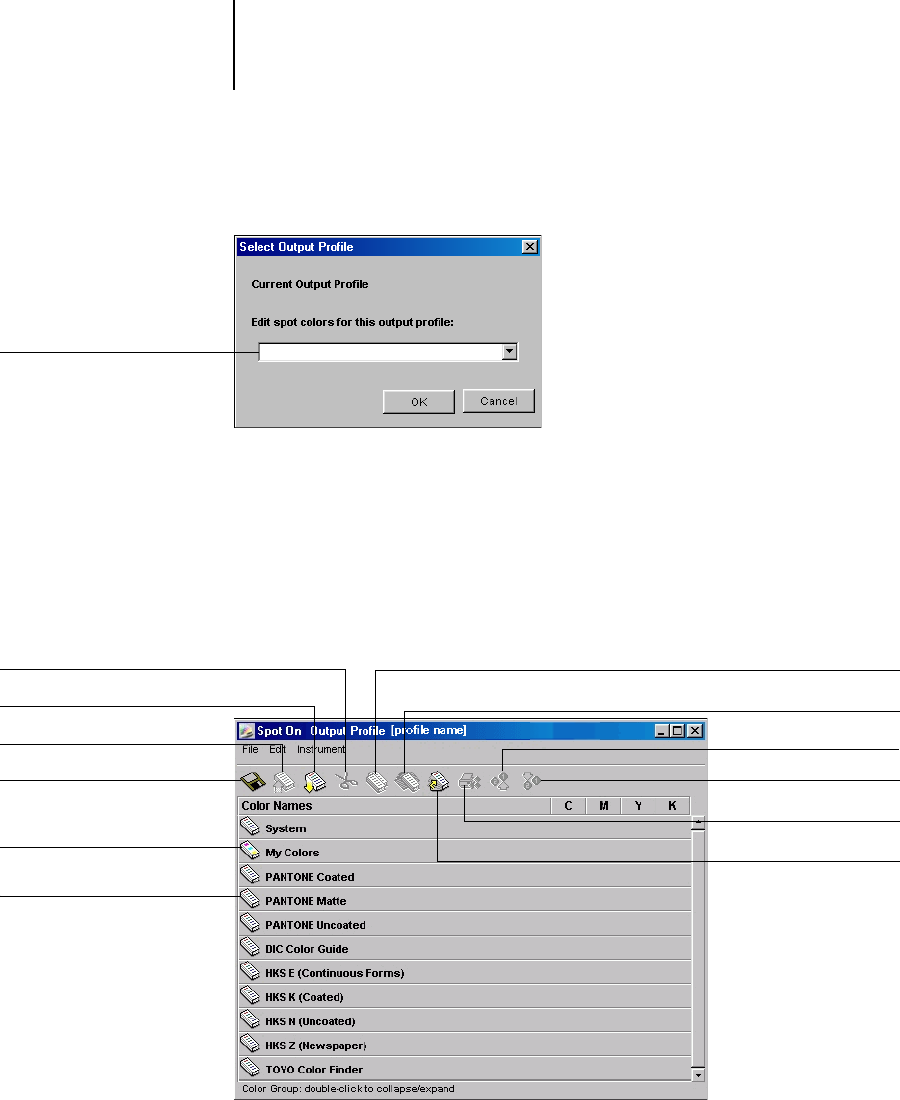

2. Choose the desired output profile and click OK.

The Spot-On main window appears. The CMYK values you see in

the window are calculated with respect to the specified profile.

Using the Spot-On main window

The Spot-On main window displays a list of color groups which

represent libraries of spot colors on the Fiery. Tool icons for

working with colors appear at the top of the window.

Output profile names

appear here

Custom color group

Down

Default color group

Close All

Save

Upload

Download

Cut

Paste

Copy
