2-60 Color Calibration

Sharp AR-C360P EFI Color Guide - 60

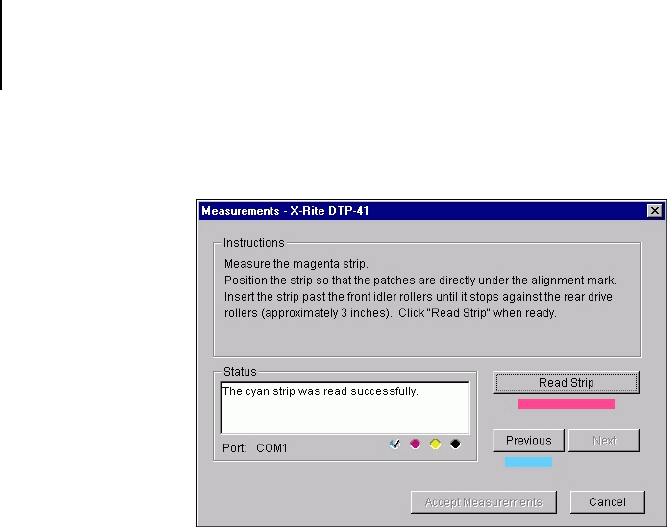

A check mark

appears on the

circle of the color

just read, and the

Status field

indicates the

color was

measured

successfully.

Click Previous

and Next to

reverse or

advance to

another step in the measurement sequence.

13. When the Status field indicates that all four color strips have been

read successfully, click Accept Measurements.

14. In the Measure dialog box, click OK.

15. Click Apply in the Calibrator window to implement the new

calibration set.

16. Click OK in the Information dialog box.

This completes the Fiery calibration process.
