Setting Up Status and Alert Messages
139
4. Network
Printer

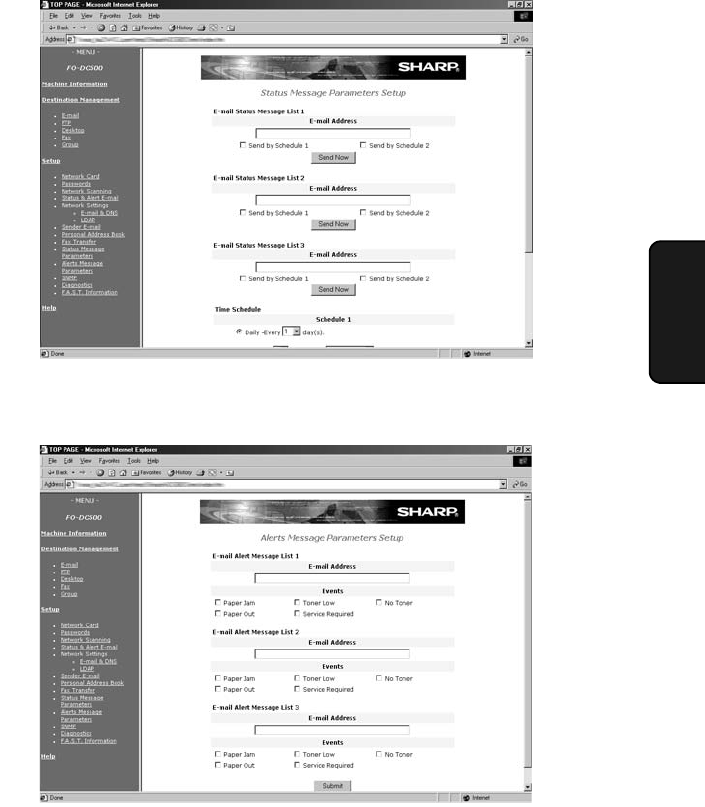

Next, click Status Message Parameters in the Web page menu. Enter the e-
mail addresses to which status messages are to be sent, and select the
schedule (1 or 2) for sending status messages. Schedules 1 and 2 can be set
up at the bottom of the page.
To set up alert messaging, click Alert Message Parameters in the Web
menu. Enter the e-mail addresses to which alert messages are to be sent,
and select the conditions that will cause an alert message to be sent.
Setting Passwords
Passwords can be set to restrict Web page access and protect settings. For
more information, see page 81.
all.book Page 139 Thursday, May 13, 2004 8:51 AM
