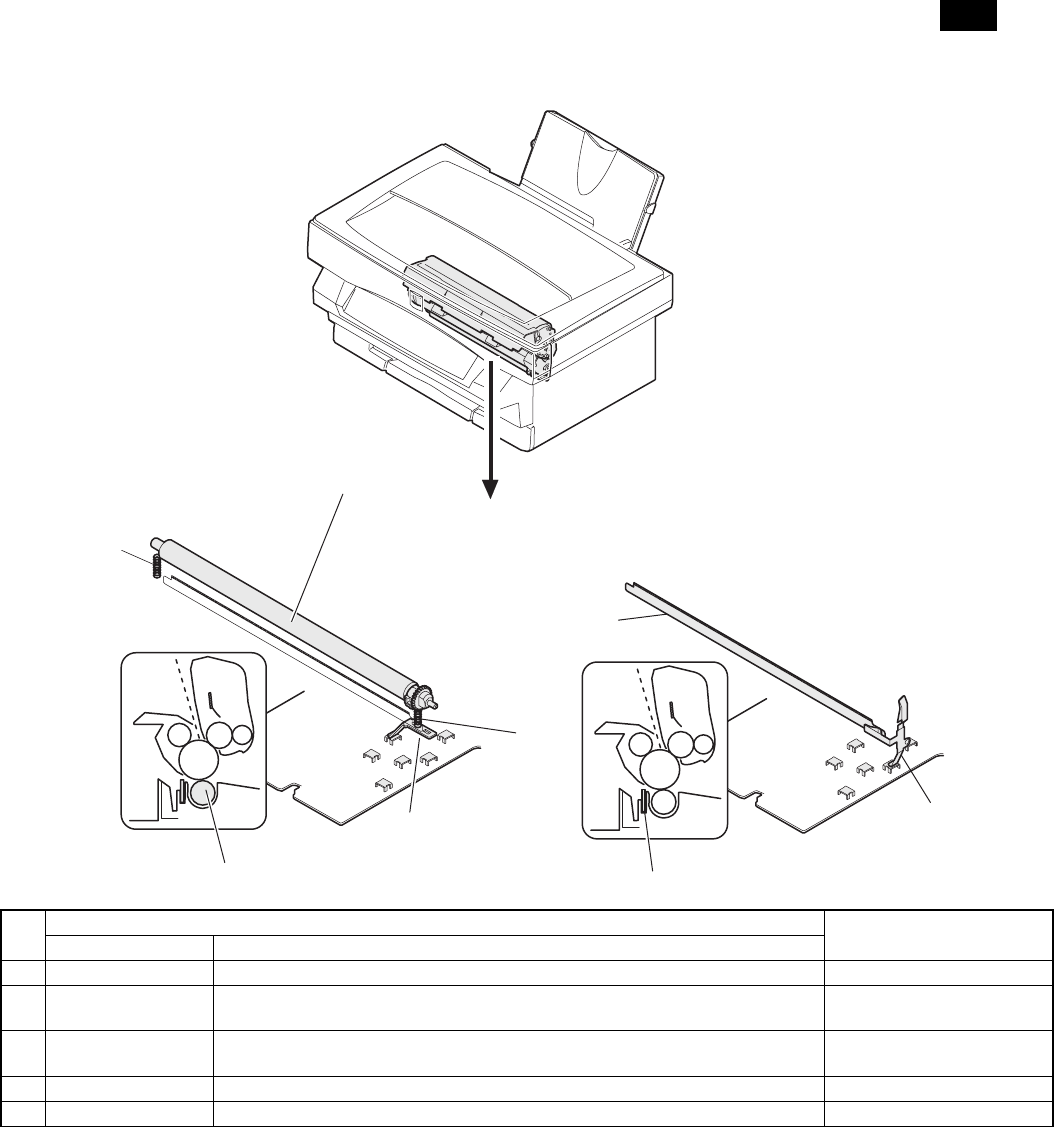

<3> Transfer, separation section
No.
Parts
Note
Name Function/operation
1 Transfer roller Transfers toner images on the OPC drum onto the paper.
2 Transfer roller
electrode
Connects the transfer roller and the transfer voltage output (high voltage PWB).
3 Pressure spring Applies pressure to the transfer roller, paper, and the OPC drum to improve
transfer efficiency.
4 Separation electrode Reduces paper charging potential to facilitate separation of paper.
5 Earth electrode Connects the separation electrode and the earth (high voltage PWB).
