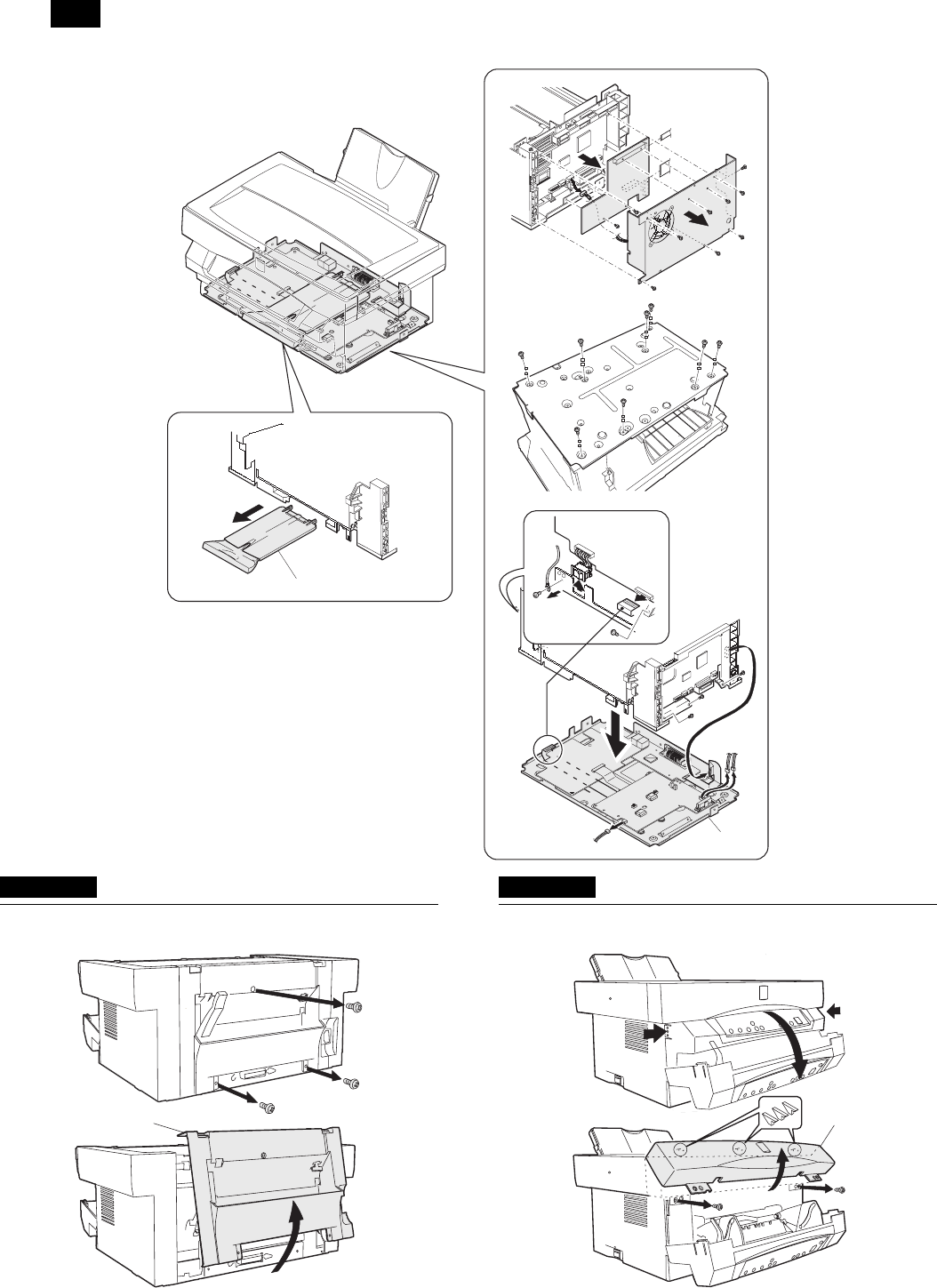

S001/P001 Rear cabinet

(1) Remove the screw and remove the rear cabinet (S001/P001) in

the arrow direction.

∗ Troubles caused by improper work

1) Paper detector malfunction

S001/P002 Front upper cabinet

(1) Open the operation unit and remove the screw. Remove the

front upper cabinet (S001/P002) in the arrow direction.

∗ Troubles caused by improper work

1) The operation unit cannot be closed completely.

S001/P009

S001/P008

S001/P001

S001/P002

FO-3800M

9 – 5
