AR-168N/168L EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 2

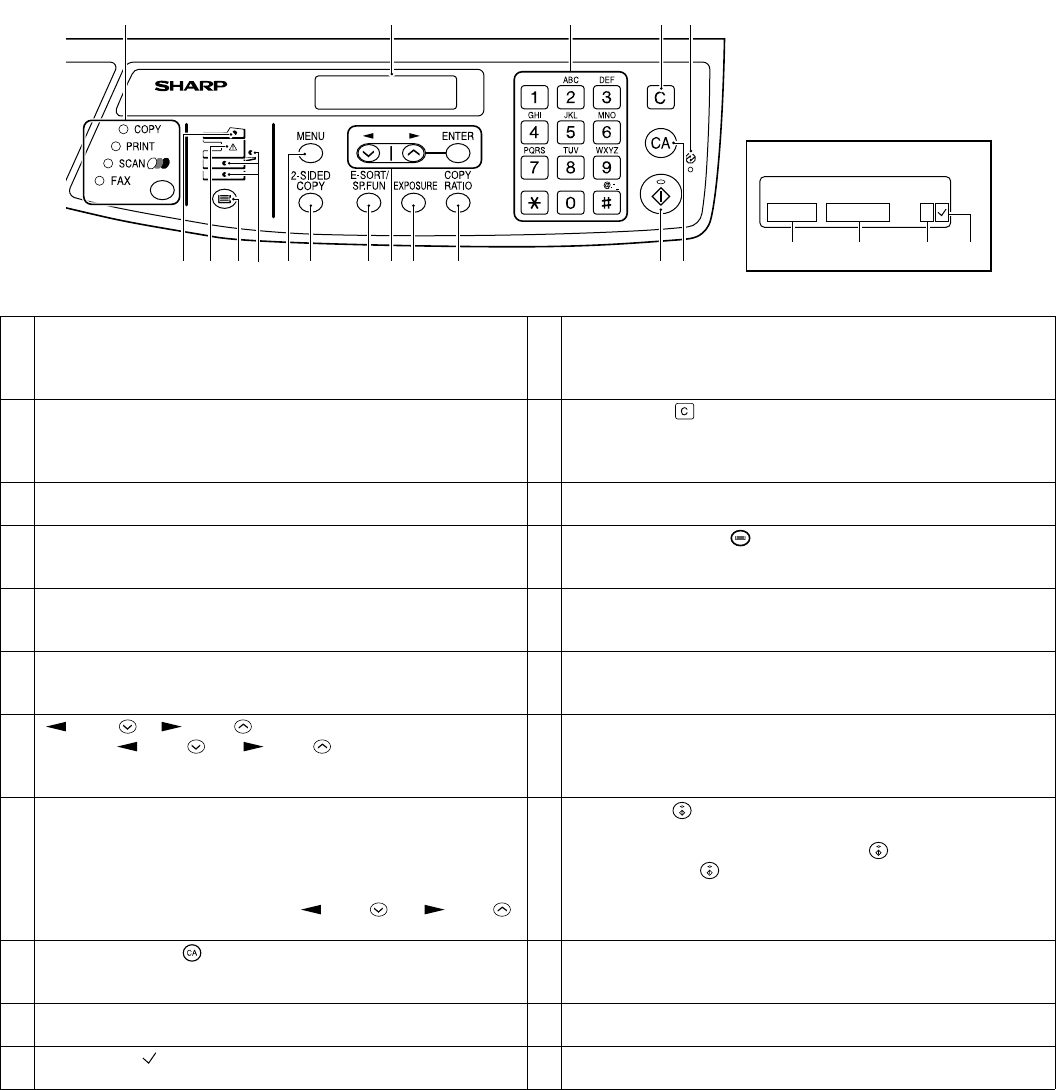

3. Operation panel

1 [MODE SELECT] key / Mode indicators

Press this key to select the mode. The indicator of the selected mode

lights (copy, printer, scanner, fax mode indicators).

2 Display

This shows messages indicating the machine status and any

problems that occur, as well as user programs and function setting

menus.

3 Numeric keys

Use these to enter the number of copies and other numerical

settings.

The keys can also be used to select items in function setting menus.

4 [CLEAR] key ( )

Use this to clear the set number of copies, as well as cancel a job

that is in progress. When a setting menu appears, use this key to

move back to the previous menu level.

5 Power save indicator

This lights up when the power save function is activated.

6 RSPF indicator (AR-168L only)

This lights up when an original is placed in the RSPF.

7 Error indicator

This lights steadily or blinks when a paper misfeed or other error

occurs.

8 [TRAY SELECT] key ( )

Use to select the paper tray that has the desired paper for copying.

9 Tray location indicator

Indicates the selected paper tray. The indicator blinks when the tray

is out of paper or is not closed.

10 [MENU] key

Press this key to select the paper size for copying, to configure a

user program or to display the total count.

11 [2-SIDED COPY] key

Press to select the automatic two-sided copying mode.

12 [E-SORT/SP.FUN] key

Press to select the sort function, 2 IN 1 copy function, or margin shift

function.

13 [ ] key ( ), [ ] key ( ), [ENTER] key

Press the [ ] key ( ) or [ ] key ( ) to select an item in a

function setting menu.

Press the [ENTER] key to enter a selection.

14 [EXPOSURE] key

Use to switch from auto exposure adjustment to text mode or photo

mode.

15 [COPY RATIO] key

Press to select an enlargement or reduction ratio.

To select a preset ratio setting, press the [COPY RATIO] key and

select the desired preset ratio. To select a ratio that is not preset,

press the [COPY RATIO] key, select the preset ratio that is closest to

the desired ratio, and then press the [ ] key ( ) or [ ] key ( )

to increase or decrease the ratio in increments of 1%.

16 [START] key ( ) / Ready indicator

The ready indicator lights up when copying or scanning is possible.

To begin copying, press the [START] key ( ).

The [START] key ( ) is also pressed to return to normal operation

from auto power shut-off mode.

17 [CLEAR ALL] key ( )

This returns all functions to the default settings. When pressed in a

setting menu, this returns the settings and display to the initial state.

18 Shows the current copy ratio.

19 Shows the selected paper size. 20 Shows the number of copies that has been entered with the numeric

keys.

21 A checkmark " " appears when the exposure has been changed, or

when two-sided copying, sort, 2 IN 1, or margin shift is selected.

READY TO COPY.

100% 8.5x11 0

Display

AR-168L

6 7 8 9 10 11 12 1314 15 16 17

18 19 20 21

12345
