Maxiva UAX

October 17, 2013

4‐3

888‐2693‐004 WARNING:Disconnectprimarypower priortoservicing.

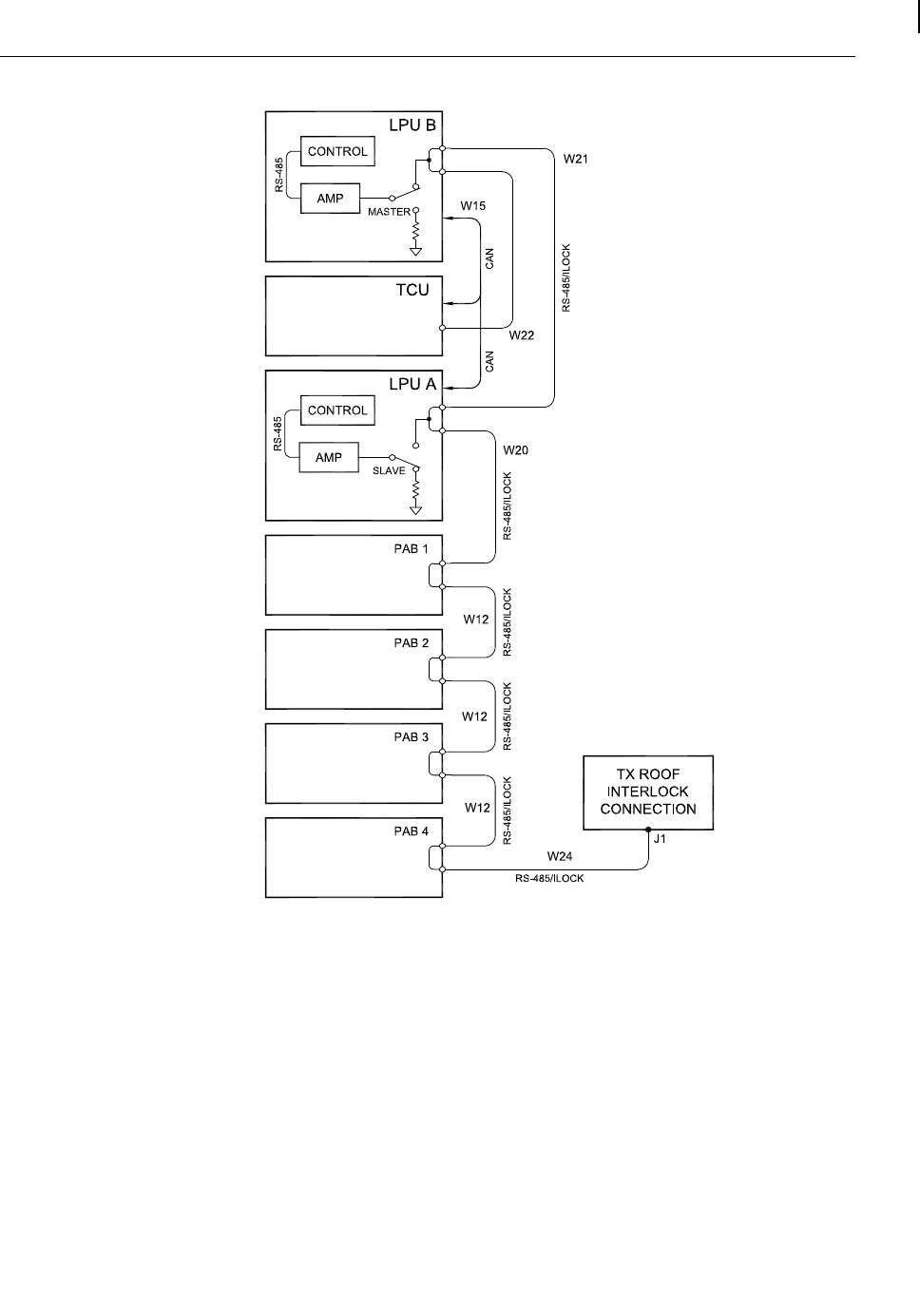

Figure 4-2 Control System Interconnect

WhenanLP

Uisinslavemode,theRS‐485connectiontotheexternaltransmittercomponentsisbrokenattheamp

controllerboard,therebypreventingthereserveLPUfromconflictingwiththeactiveLPUandcorruptingRS‐485

communications.

IftheTC

UisdisconnectedandthetwoLPUsremainbussedtogether,bothLPUswilltrytofunctioninmastermode

andtherewillbesignalcontention.Inthatcondition,oneoftheLPUsmustbemanuallysettoslavemode.Thiscan

bedoneviatheLPULCDscreenbyna

vigatingtotheSETUP>SYSTEMSETTINGS>DRIVERMODE:menuandselecting

SLAVE.
