Installation
3-6
Part 1105120-01
E 2013 Nordson Corporation
Power Connections (contd)
L1
L2 L3
RJ45 Network Cable
Lamphead Unicable
Lamphead Unicable
Lamphead Unicable
Lamphead
Lamphead
Lamphead
System Controller
Input
Power
Source
Lamphead Unicable
Lamphead
System Controller
System Controller
System Controller
RF Detector Cable
RF Detector
RJ45 Network Cable RJ45 Network Cable
Network Settings
Master:
ID : 00
FLT: A
NT: CAN or 485
CTRM: Y
First unit on network
Network Settings
Remote:
ID : 01
FLT: A
RFD: N
NT: CAN or 485
CTRM: N
Network Settings
Remote:
ID : 02
FLT: A
RFD: N
NT: CAN or 485
CTRM: N
Network Settings
Remote:
ID : 03
FLT: A
RFD: N
NT: CAN or 485
CTRM: Y
Last unit on network
GND
GND
GND
GND
GND
L3 (C)
L2 (B)
L1 (A)
L2 (C)
L3 (B)
L2 (A)
L2 (C)
L1 (B)
L3 (A)
L3 (C)
L2 (B)
L1 (A)

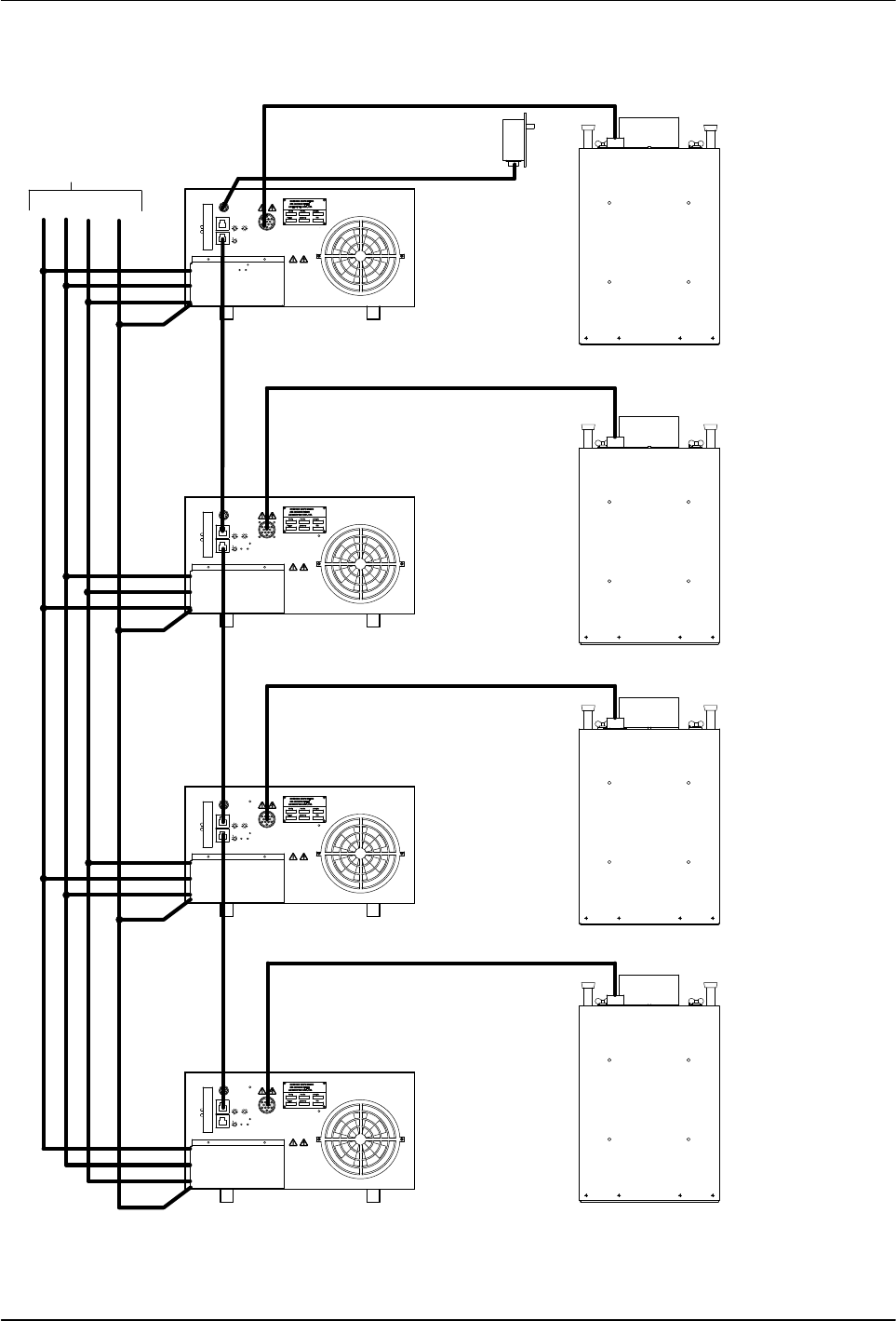

Figure 3-5 System Diagram − Four Systems, Two RF Detectors, One Network
