Installing and Removing PC Cards
You have completed the installation of the PC Card. Refer to the
following sections:
To use PC Cards, see “Using PC Cards” on page 61.
To use PC Cards with power-saving functions, see:
– “Considerations for Suspend Mode” on page 55.
– “Considerations for Hibernation Mode” on page 60.
To secure your PC Card with a lock, see “Using the PC Card
Lock” on page 132.
Removing the PC Card
Warning:
Make sure the PC Card lock is
removed.
1

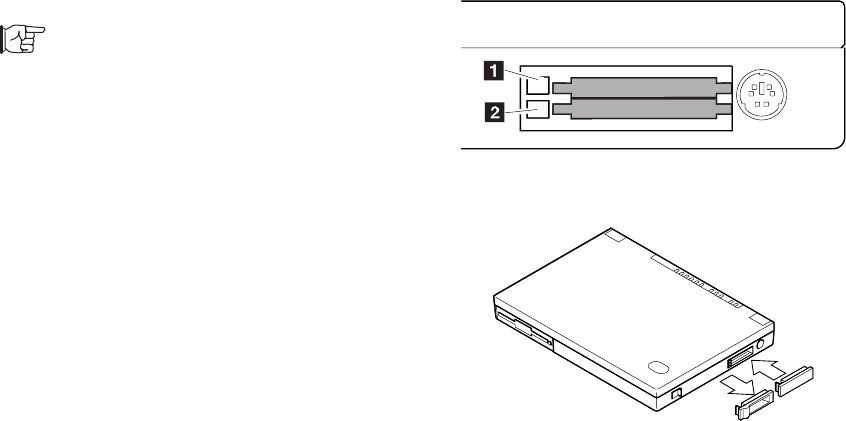

Press the PC Card eject button, 1 or 2 , for the PC
Card you want to remove; then remove the PC Card.
To remove PC Card lock:
Page 132.
2
If you are not going to use the PCMCIA slot, remove the
cover with the cable opening; then install a blank cover.
136 IBM ThinkPad 755CX User's Guide
