Appendix. F Wiring Diagrams Appendices
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] F-1
Appendix. F
Appendix F Wiring Diagrams
F.1 RGB Monitor ID Wraparound Connector (15-pin to 15-pin)

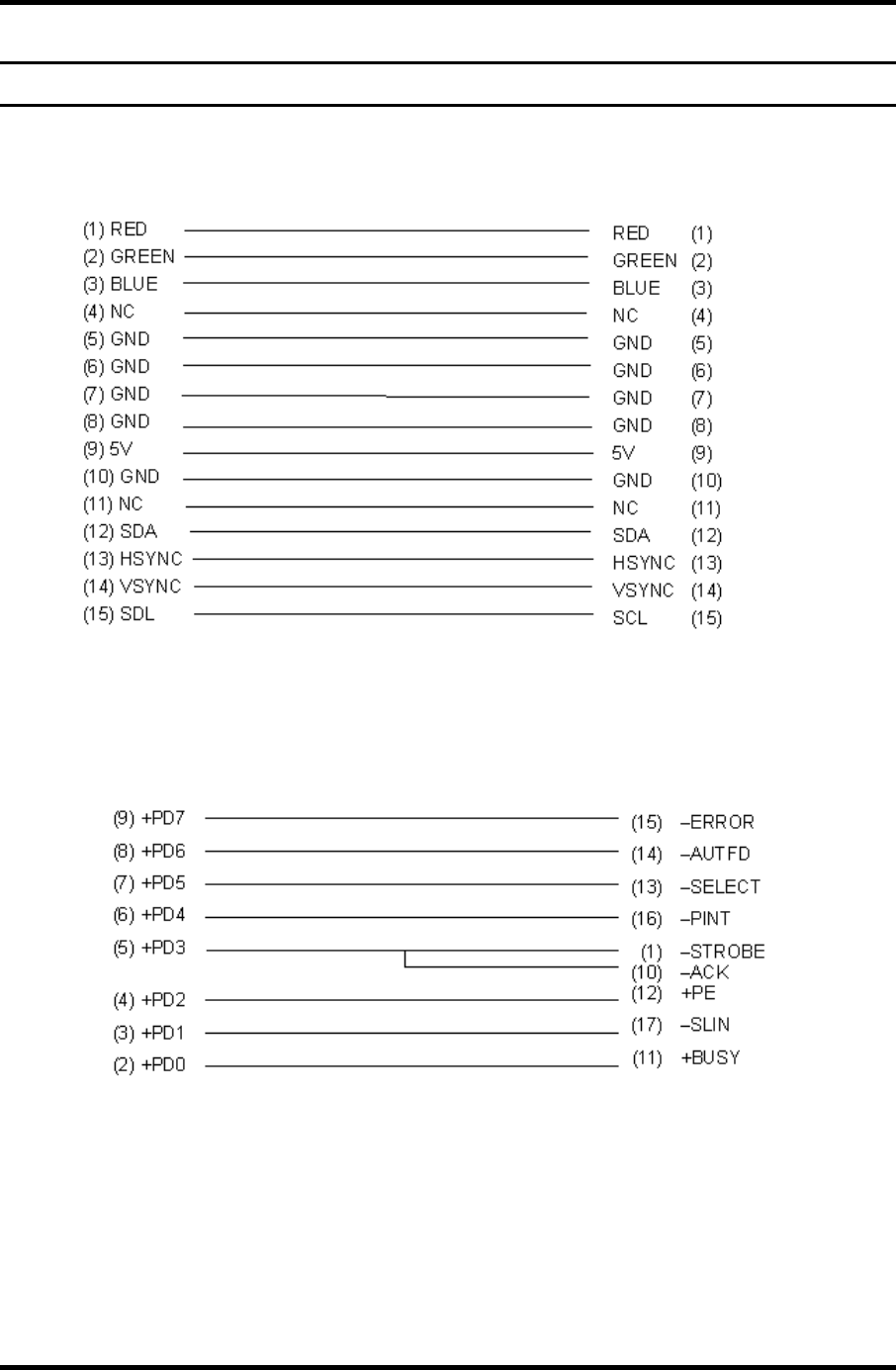

Figure F-1 RGB monitor ID wraparound connector
F.2 Parallel Port Wraparound Connector
Figure F-2 Parallel port wraparound connector
