4.17 Battery Latch 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-51
4.17 Battery Latch
Removing the Battery latch
The following describes the procedure for removing the battery latch (See Figure 4-35, 4-36).
1. While pressing projections of the SB latch button inside each other, push the SB
latch button to the bottom of the base assembly to remove.

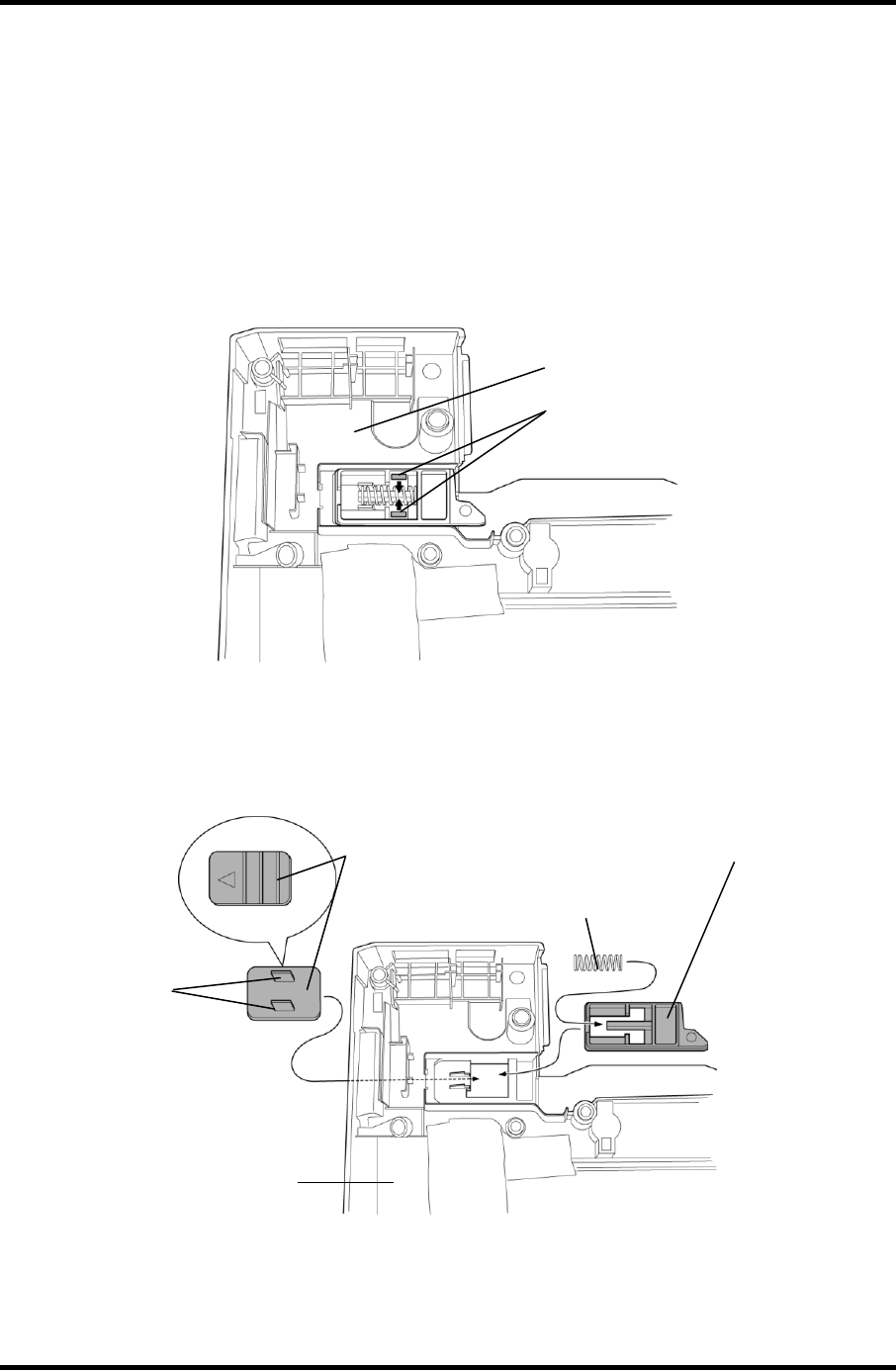

Figure 4-35 Removing SB Latch Button
2. Remove the battery lock L from the base assembly and remove the spring from the
battery lock L.
Figure 4-36 Removing Battery Lock L
Base Assembly
Projection of the SB latch button
Base Assembly
Projection
(Back view)
SB Latch Button
Battery Lock L
Spring
