Video Wall Projection

Notes on the Wide Video Wall Projection

Selecting “2 X 1”, “3 X 1”, “4 X1”, “5 X 1”, “6 X 1”, “7 X 1” or “8 X 1” on “Division” (see page 46) allows you to

create the wide video wall.

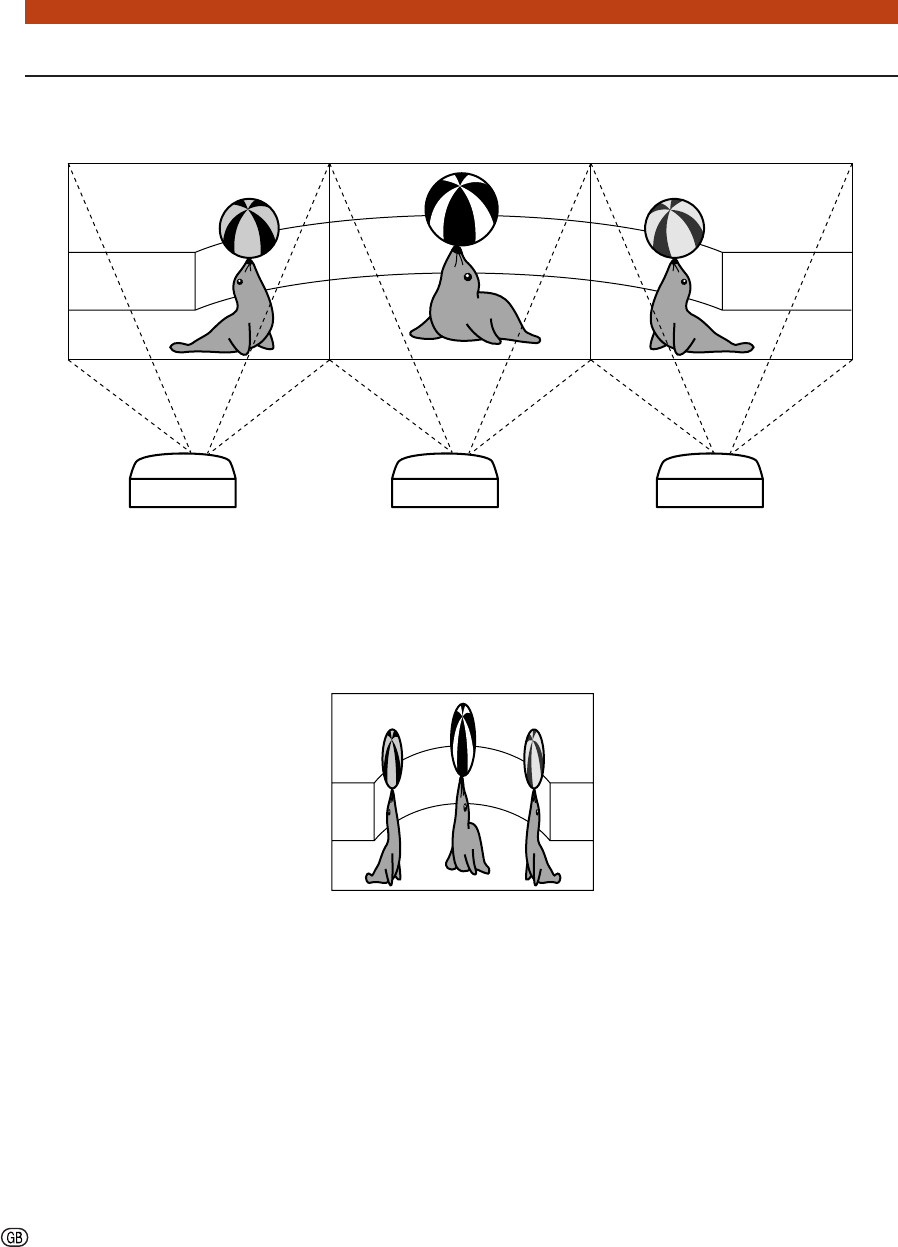

To create the wide video wall with three projectors lining up in single file from left to right (as shown above),

select “3 X 1” on “Division”, select a position for each projector, and then input the image which width is

compressed at 1/3 (as shown below).
