AR-FX12 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-3

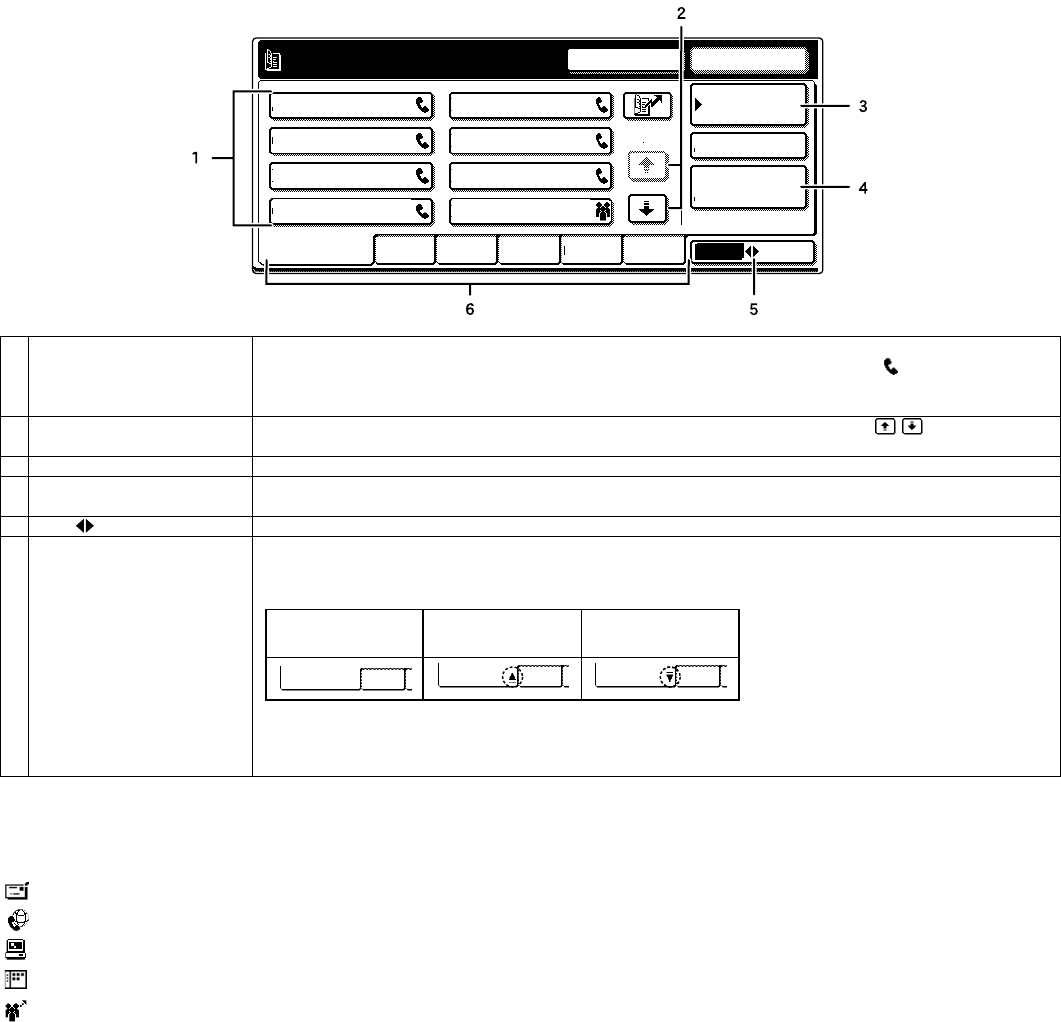

B. Address book screen (alphabetically ordered)
The screen below appears initially when the address book is set as the initial screen using "Default display settings" in the key operator programs.
• The screen below is the alphabetical index screen. You can also have the user index screen appear initially.
• The screen appears as shown below when the network scanner option is not installed.
NOTE
When the network scanner option is installed and a destination other than a fax numbers is stored in a one-touch key, one of the following icons will
appear.
: Scan to E-mail destination
: Internet fax destination
: Scan to FTP destination
: Scan to Desktop destination
: Multiple destinations (Scan to E-mail, fax, etc.)
1 One-touch key display This shows the one-touch keys that have been stored on the selected "index card". The key type is indicated by
the icon at the right. One-touch keys in which a fax number is stored are indicated by a " " icon.
The display is initially set to show 6 keys. This can be changed to 8 or 12 using the key operator program.
Display illustrations in this manual show the display set to eight keys.
2 Display switching keys When more one-touch keys are stored than can be displayed in one screen, touch the " " keys to change
screens.
3 [CONDITION SETTINGS] key This displays the condition settings screen (previous page), which is used to set various conditions.
4 [GLOBAL ADDRESS
SEARCH] key
Touch this key to search for a fax number on an LDAP server.
5 [ABC GROUP] key Touch this key to switch between the alphabetical index and the group index.
6 Index keys One-touch key destinations are stored on each of these index cards (alphabetical index or group index). Each time
the selected tab is touched, the key display order changes from the order of storing (the initial display order), to
ascending order, to descending order. As this is done, the icon on the tab indicates the current display order.
Group indexes make it possible to store one-touch keys by group with an assigned name for easy reference. This
is done with the custom settings.
Frequently used onetouch key destinations can be stored on the FREQUENT USE card for convenient access.
A
FREQUENT USE ABCD EFGHI JKLMN OPQRST UVWXYZ
ABC
GROUP
B
C D
E F
G
H
CONDITION
SETTINGS
READY TO SEND.
ADDRESS REVIEW
RESEND
SPEAKER
GLOBAL
ADDRESS SEARCH
1/2
Storing or order
(initially selected)
Ascending order Descending order
FREQUENT USE ABCD
FREQUENT USE ABCD FREQUENT USE ABCD
