TONER CARTRIDGE REPLACEMENT
83
5
GENERAL INFORMATION
3

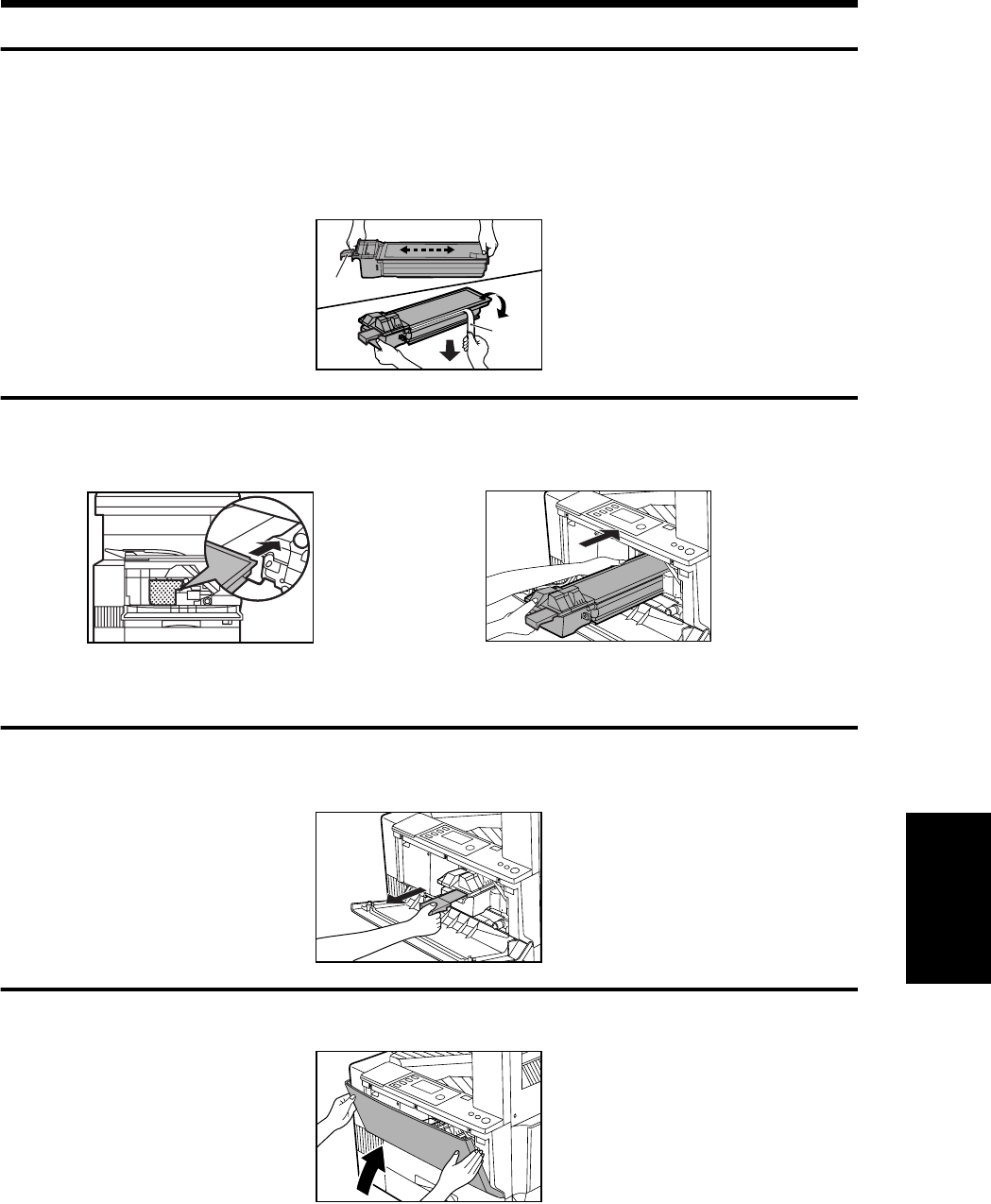

Remove the new toner cartridge from the bag. Grasp the cartridge on
both sides and shake it horizontally approximately 20 times. After
shaking the cartridge, remove the tape.
NOTE:
Grasp the grip when holding the cartridge. Do not hold the cartridge by the shutter. Be sure to
only shake the cartridge before the tape is removed.
4
Gently insert the toner cartridge along the guides until it clicks in
place while pushing the lock release lever.
NOTE:
If dirt or dust is adhered to the toner cartridge, remove it before installing the cartridge.
5
Remove the tape from the shutter. Pull the shutter out of the toner
cartridge as shown in the illustration. Discard the shutter.
6
Close the front cover.
Shutter
Tape
Approx. 20 times
