Purpose of Document

This document is for explaining the content, procedure and

caution on each adjustment so that users in charge of

machine maintenance understand and perform the

machine adjustment properly.

To adjust the machine, tap the [Machine Adjustment] key in

the Home Screen to open the Machine Adjustment screen.

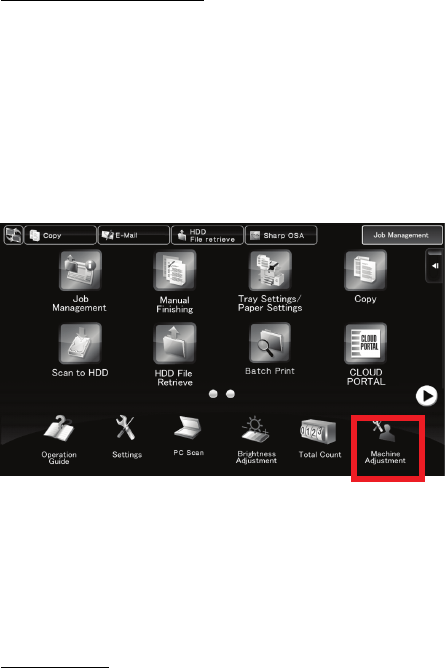

■Home Screen

※When the machine is in process, machine cannot enter

[Machine Adjustment] screen. If the [Machine Adjustment]

is tapped the following messages appears with beep:

Machine Adjustment is not available due to the job

currently reserved/executed.

Terminology

Process control

Density adjustment performed automatically

either during job or between jobs.

Grey balance adjustment

Manual adjustment for gradation density

This adjustment is performed by setting specific

adjustment values for density points of gradation

density.

Calibration

Automatic adjustment for gradation density

This adjustment is performed by scanning

printed test pattern with original glass.

Dither

This refers to screen precisely, which is the

gradation (half tone) process, including error

diffusion and dithering.

Main Charger

This charges the drum electrically.

Bypass

Multi bypass tray

LCC

Large Capacity Cassette

This refers to either MX-LCX3 N or MX-LC12.

LCT

Large Capacity Trays

This refers to MX-LC13.

Void Area

Unprinted area around the edges of sheet in

printing

Image Loss

Unscanned area around the edges of

original in scanning

Main Scan Direction

Direction of machine front and rear

Perpendicular to paper feed direction

Sub Scan Direction

Paper feed direction

Jogger

This adjusts the alignment of sheets

piled in the finisher in front and rear

direction for staple.
