IP Link

Device Interface

Communication Sheet

Revision: 9/1/2010

Page 4 of 4

Cable and Adapter Requirements:

F/F RS-232 Null Modem Serial Cable

Notes for the Device:

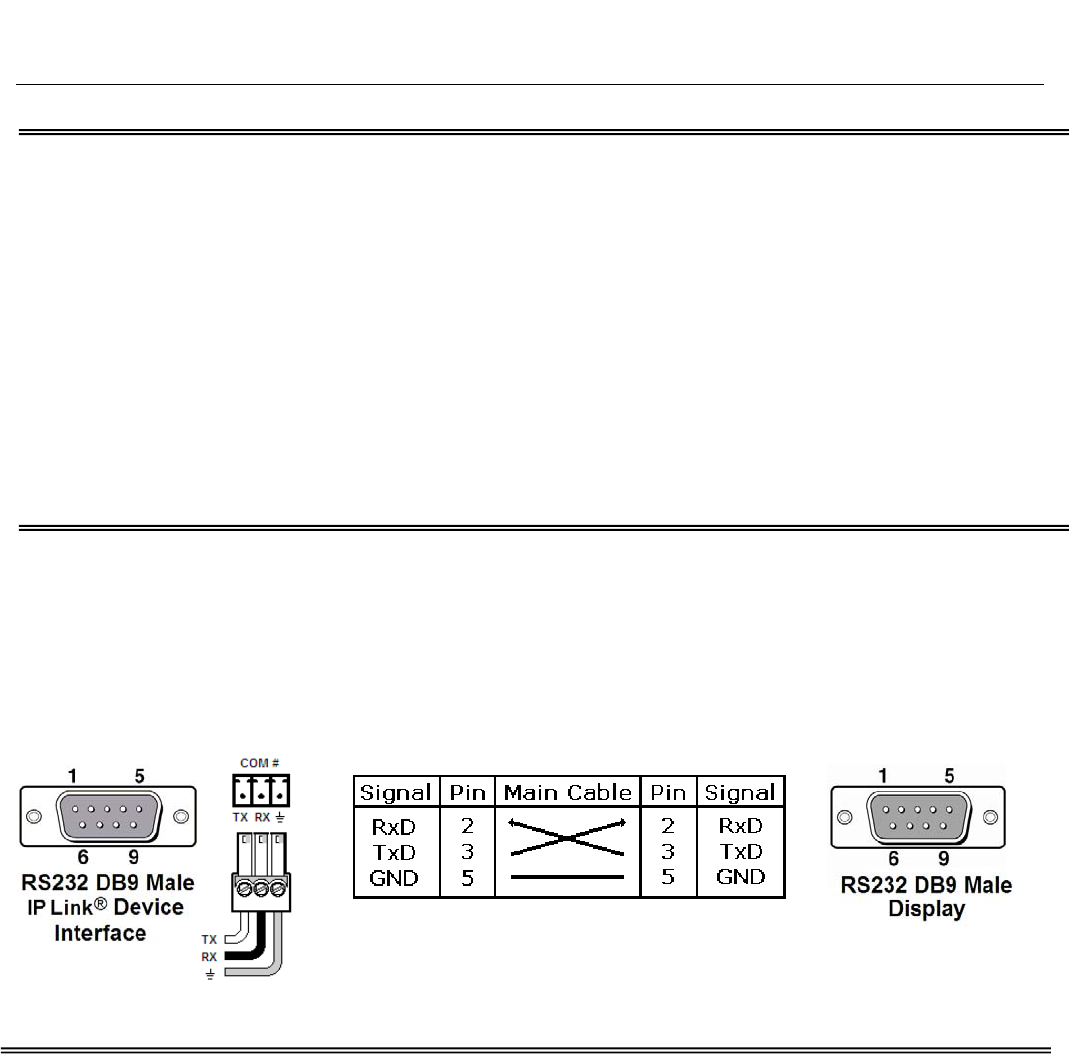

Pin Assignments Diagram:

Note: Captive screw connector may also be used as a serial connection.

General Notes:

Serial communication:

Port Type:

RS-232

Parity:

None

Baud Rate:

9600

Stop Bits:

Data Bits:

Flow Control:

None
