Chapter 5 Operating Instructions

C4000 Standard/Advanced

Subject to change without notice

Installation and mounting

 Mount the bolts marked with  to  on the operator side of the system to ensure that

they remain accessible after mounting and to allow you to readjust the safety light

curtain later, if necessary.

 If you wish to use the additional front screen (see “Additional front screen (weld spark

guard)” on page 110), make sure that the curved side of the device remains accessible

after mounting.

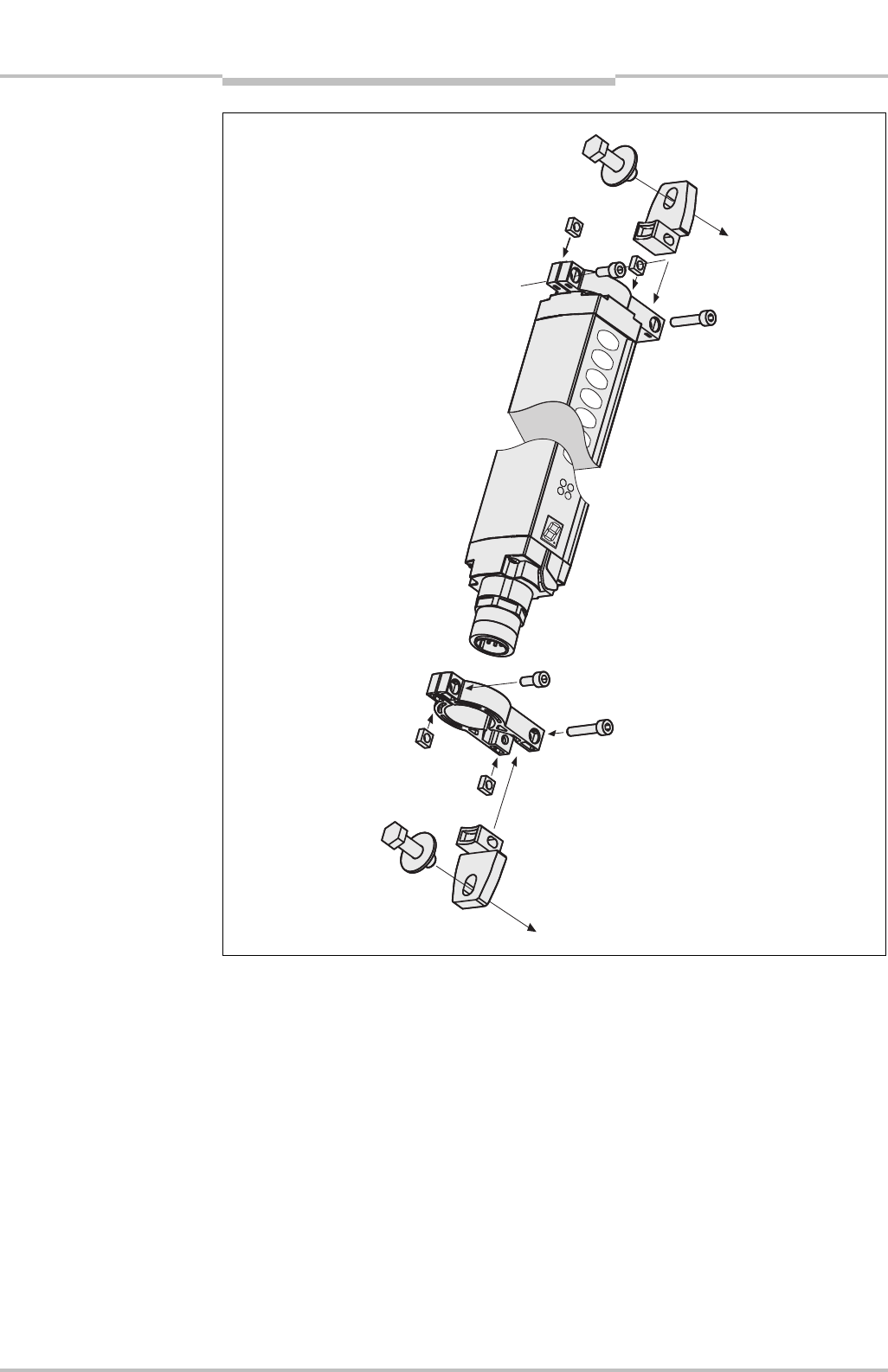

Fig.

Mounting sender and

receiver using swivel mount

brackets

Notes








