Name Function

Rear foot fixing points

(two points)

Attach the feet when using the projector on a surface such

as a desk. (Only models with feet supplied)

s "Attaching the feet (Only models with feet supplied)"

p.14

Wall mount fixing

points (four points)

Attach the setting plate when mounting on a wall. (Only

models with setting plate supplied)

s Installation Guide

s "Optional Accessories" p.146

Front foot fixing point

Attach the foot with a spacer when using the projector on a

surface such as a desk. (Only models with feet supplied)

s "Attaching the feet (Only models with feet supplied)"

p.14

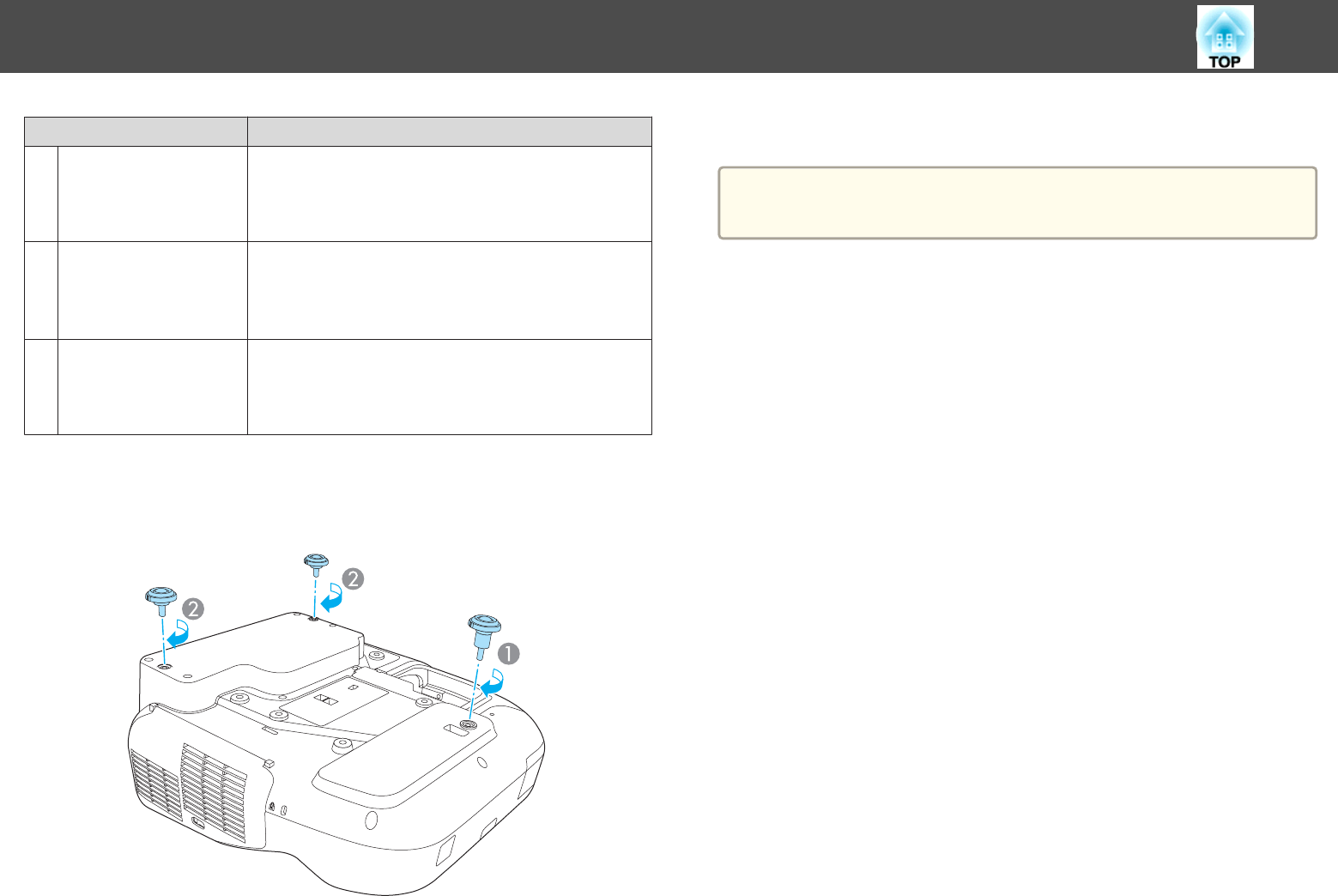

Attaching the feet (Only models with feet supplied)

Insert the feet into the foot fixing points.

Insert the foot with the spacer into the front foot fixing point.

Insert the rear feet (x2) into the foot fixing points.

You can install this projector vertically on a desk.

s "Installation Methods" p.24

Part Names and Functions
