MX-LCX2 OPERATIONAL DESCRIPTION 5 – 2

3. Paper empty detection

When the tray lifts and stops at the paper feed position and during

paper feed operation, paper presence/empty is detected by the

paper presence/empty sensor (LPED).

When paper empty is detected in the tray during paper feeding,

paper feeding is stopped.

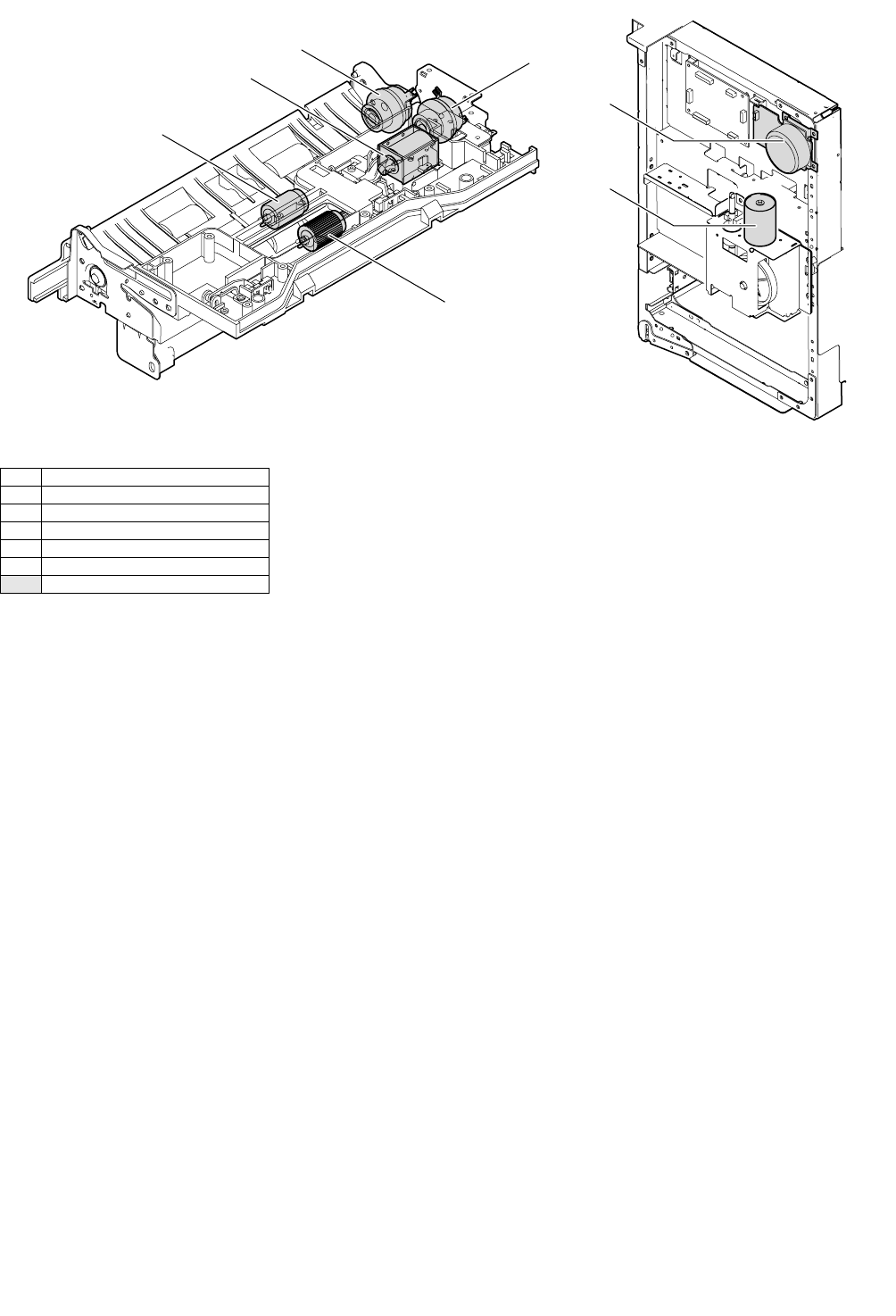

1 Paper feed roller clutch

2 Take-up roller

3 Paper feed roller

4 Paper feed solenoid

5 Transport clutch

6 Transport motor

7 Lift-up motor
