MX-5141FN MX-4140N/4141N/5140N/5141N (MAIN UNIT) 2 – 3

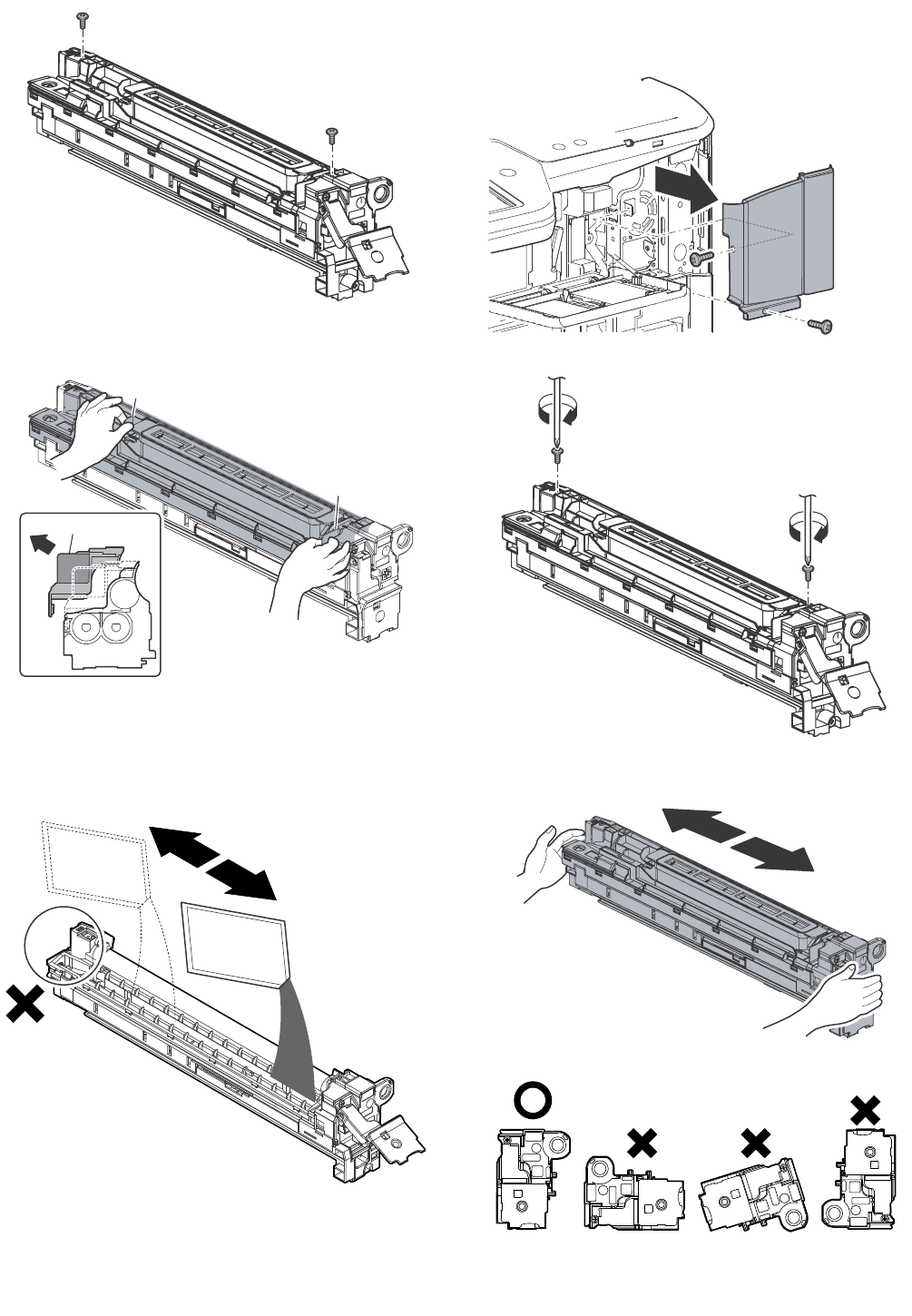

5) Remove the screws.

6) Hold the sections A, and remove the DV cover in the arrow

direction (B).

7) Supply developer (Packed items) in the developer unit.

* Shake the bag of developer with unopened state. After stir-

ring toner and developer in the bag, supply it to the develop-

ing unit.

* When replacing developer, use an extreme care not to drop

developer on the drive section (marked with (฀ )).

8) Install the DV cover in the arrow direction A.

* When installing the DV cover, be sure to engage the pawl

with the boss.

9) Secure the DV cover with the two screws.

10) Shake the developer unit horizontally a few times.

* When supplying developer, do not tilt the developing unit.






