MJ15AS*/MJ17AS*/MJ19AS*/

MJ15BS*/MJ17BS*/MJ19BS*

3-1

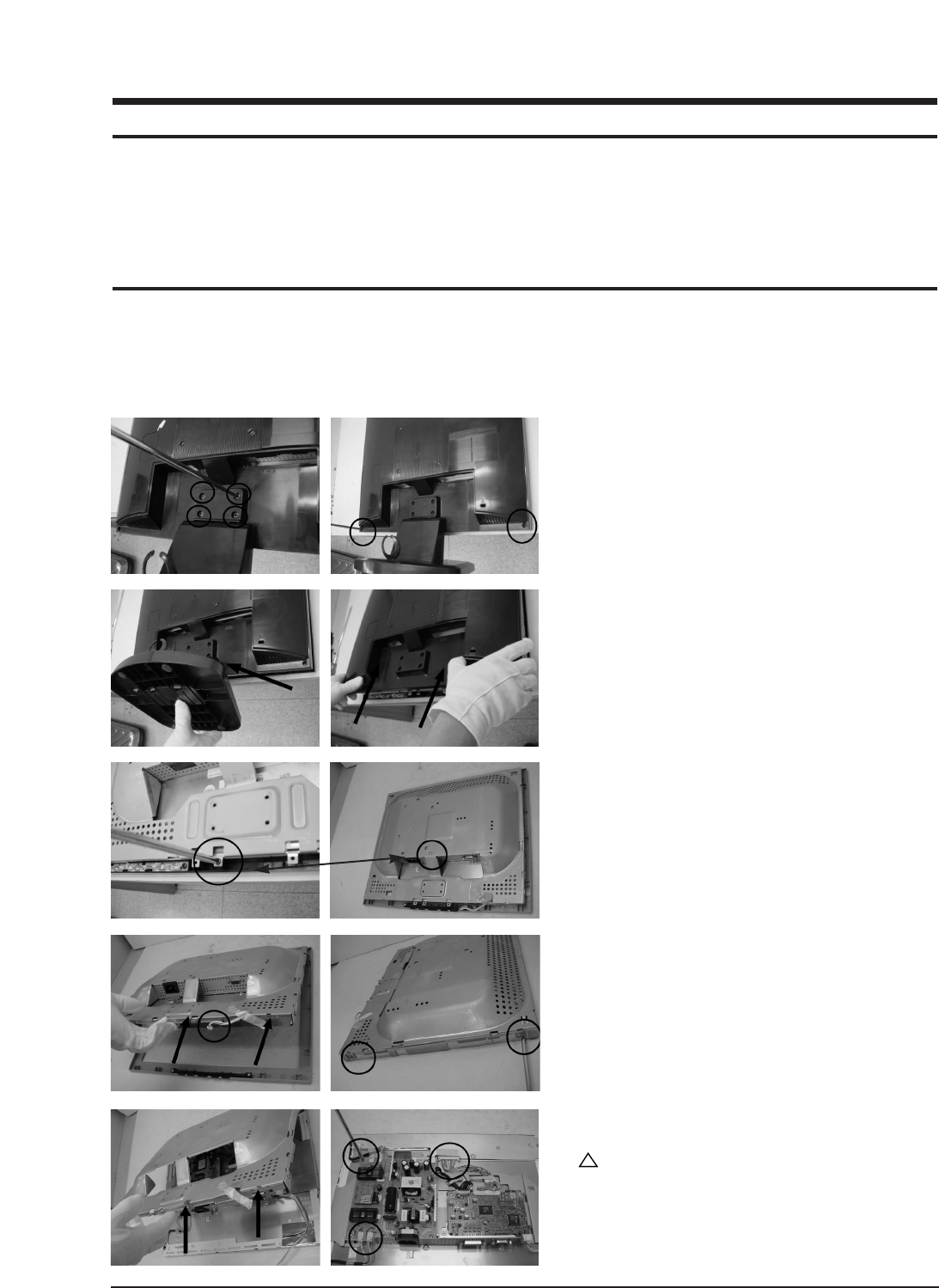

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the

MJ15AS*/MJ17AS*/MJ19AS*/MJ15BS*/MJ17BS*/MJ19BS* TFT-LCD monitors.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

3-1 Disassembly

Cautions:1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use any metal instrument except provided jig to

separate the cabinet.

3. R/Cover opening jig : BH81-00001A

1. Place monitor face down on cushioned table.

Remove 4 screws from grip on the stand and

remove the stand. Remove 2 screws from the

rear cover.

2. Insert the opening stand into the grooves at a

hole and press until it clicks and lift the rear

cover.

3. Remove 2 screws from the shield.

4. Disconnect function cable from the cover front

and lift up the panel. Remove 4 screws from

the panel shield. (Right / Left)

5. Lift up the panel shield and carefully remove

the silicon glue on the cables with a nipper.

Caution : Lamp wire may be easily

damaged. Please use caution when removing

the silicon.
