SPEC No.

LC99213A

MODEL No.

LM10V332

PAGE

13)

Procedure insert mating connector

When the mating connector is inserted, it should be parallel to the used connector of LCD

module and it should be inserted on horizontal firm base.

When the mating connector is attempted to be fixed to LCD connector, it should be inserted

properly in order not to create a gap as shown following diagram 2).

Please insert the connector as both edge is placed to the connect position of LCD connector.

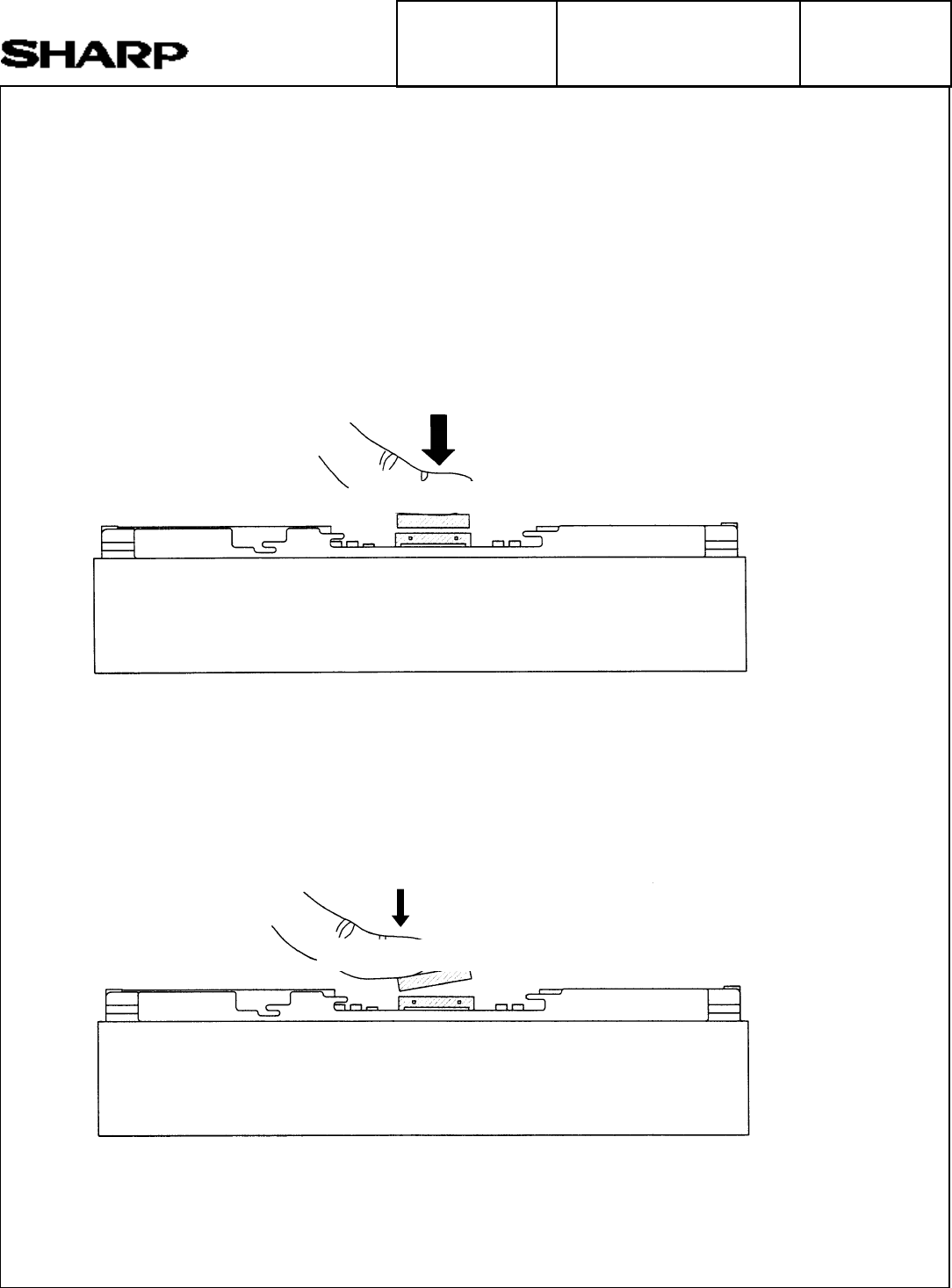

1)Method of correct insert

Method of wrong insert

Stress is dispersed

Base (horizontal film base) is required

Stress is not dispersed
