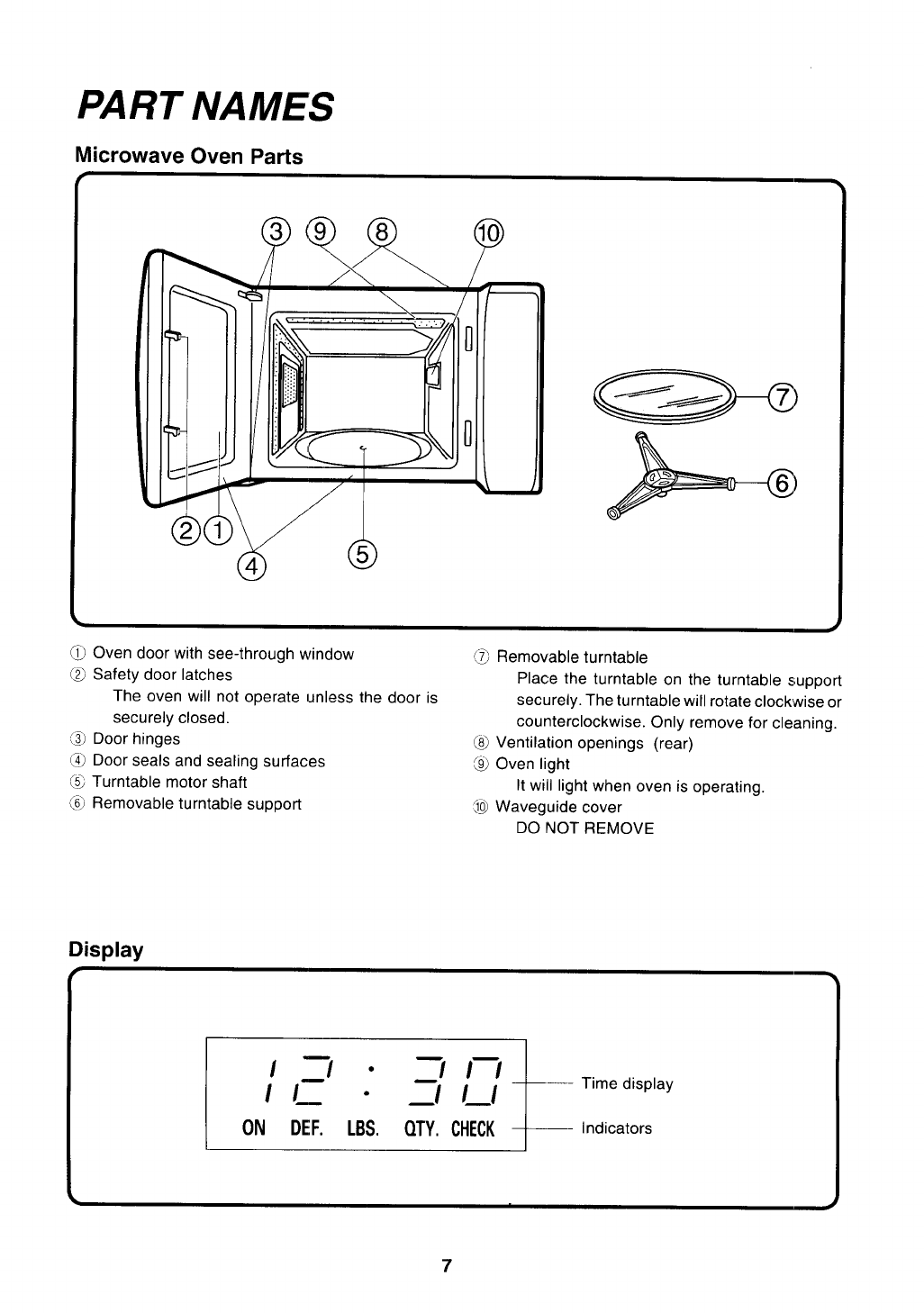

PART NAMES

Microwave Oven Parts

Oven door with see-through window

2_ Safety door latches

The oven will not operate unless the door is

securely closed.

Door hinges

Door seals and sealing surfaces

Turntable motor shaft

_6_Removable turntable support

Removable turntable

Place the turntable on the turntable support

securely. The turntable will rotate clockwise or

counterclockwise. Only remove for cleaning.

_8_Ventilation openings (rear)

Oven light

It will light when oven is operating.

_fio_Waveguide cover

DO NOT REMOVE

Display

ON DEF. L . QTY CHECK

Time display

----- Indicators

7
