ANote:

• For the cable, use a commercially available audio/video cable.

• Only connect audio/video signals to AV1 and AV-IN2 terminals. Connecting other signals may result in a malfunction.

• AV1 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals (and if you select “AV1”),

you can only view pictures from the S-VIDEO terminal. To view the picture from the VIDEO terminal, do not connect any external device

to the S-VIDEO terminal.

• For more information about external device connections, see the manuals of your external devices.

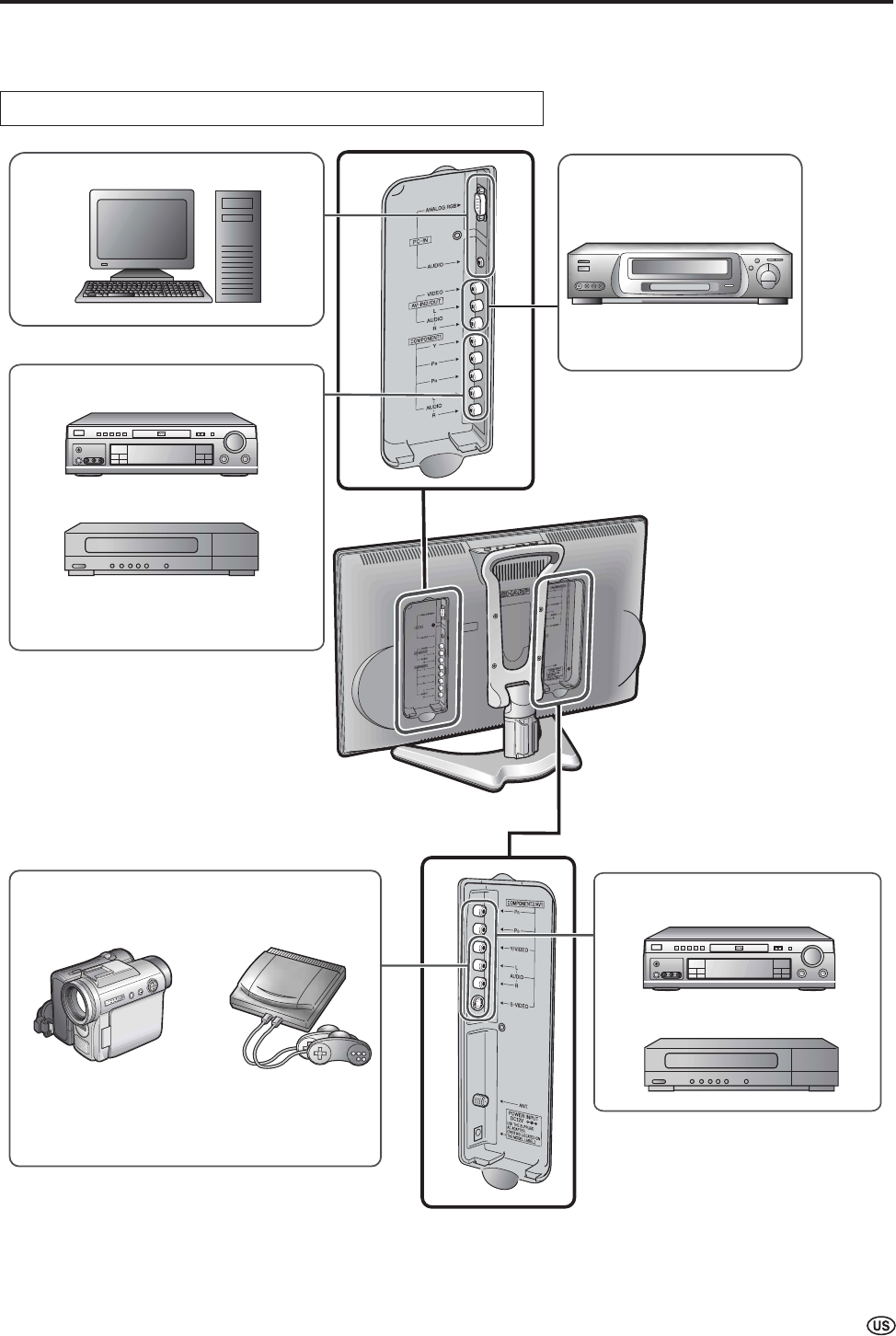

Example of External Devices that can be Connected

You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of

the main unit.

When connecting an external device, turn off the MAIN POWER of the main unit first to prevent any possible damage.

Connecting External Devices

To PC-IN terminal

• PC

• DVD Player, etc.

• Digital TV tuner

To COMPONENT1 terminal

• DVD Player, etc.

• Digital TV tuner

To COMPONENT2 terminal

* If your external device has a component

terminal, COMPONENT connection is recom-

mended (you can view high-quality pictures).

To AV1 terminal

• Camcorder

• Home video game system

* If your external device has an S-video

terminal, S-VIDEO connection is recom-

mended.

• VCR

• Laser disc player

To AV-IN2/OUT terminal
