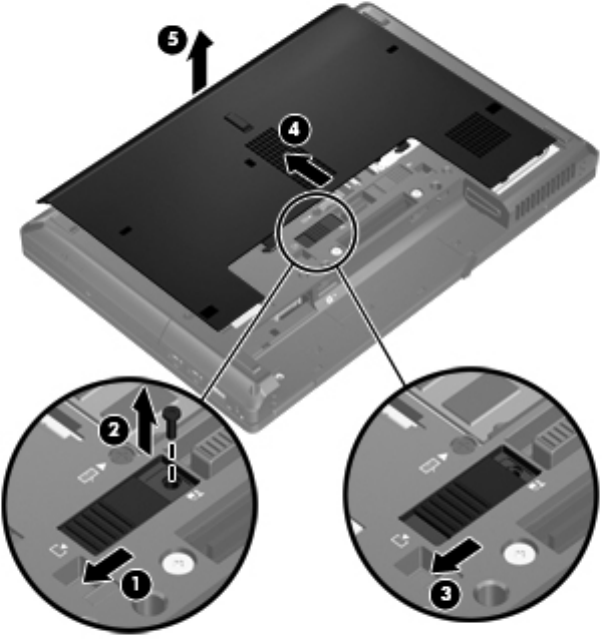

Remove the service cover (5). The service cover is available in the Plastics Kit, spare part number

639482-001.

5. Loosen the three Phillips PM2.5×9.0 screws (1) that secure the solid-state module to the computer.

6. Use the plastic tab on the solid-state module (2) to slide the drive to the left to disconnect it from

the system board.

7. Use the plastic tab to lift the right side of the solid-state module (3) until it is clear of

the base enclosure.

Component replacement procedures
