29
Basic
Operation
Shifting the Lens
In addition to the zoom function and adjustment of projection angle using the
adjustment feet, you can adjust the position of the projection using the lens
shift function. This is a useful function in cases such as when the screen cannot
be moved.
When moving upward or downward
When moving in the left and right direction
Adjustable
range
Adjustable range
Adjustable range
Adjustable range
The adjustable range is shown below.
Horizontal range: ±10%
Vertical range: +50%
(AN-PH814EZ, AN-PH818EZ, AN-PH823EZ, AN-PH845EZ)/0% (AN-PH808EX)
The adjustable range has limitations even within the range shown above.

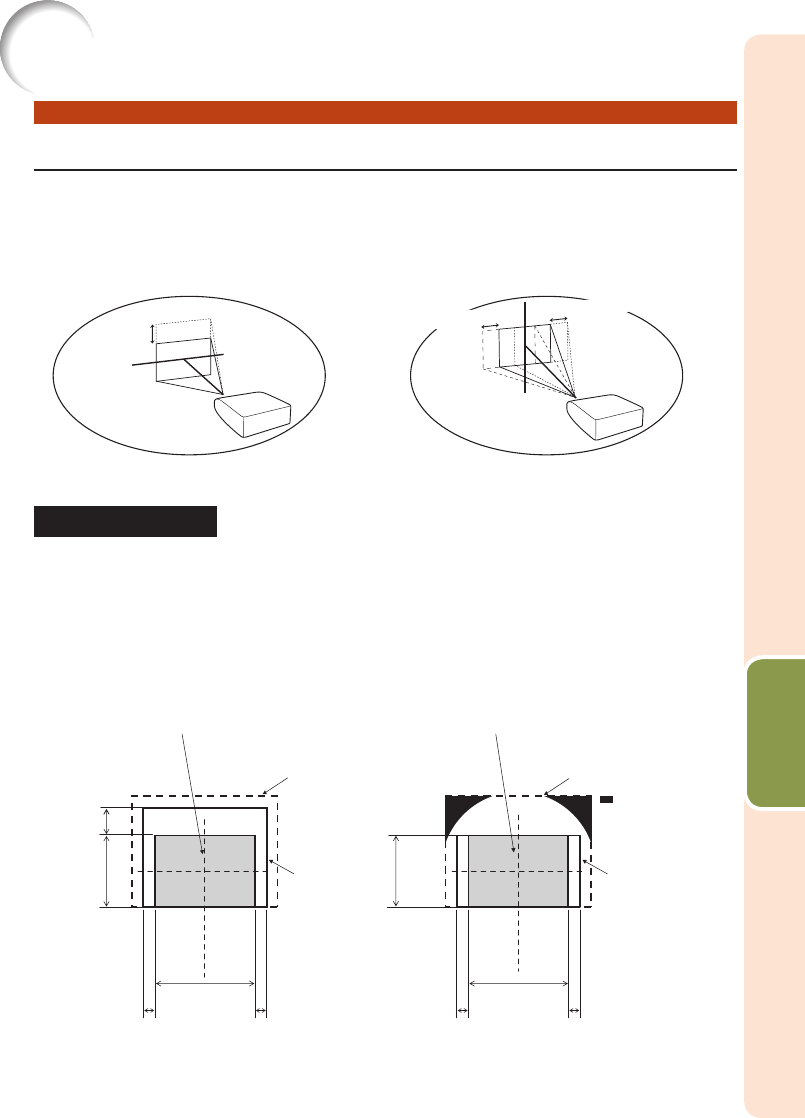

The image can be adjusted as shown on the diagram.
AN-PH814EZ, AN-PH818EZ, AN-PH823EZ,
AN-PH845EZ
Position of the image when the image is
centered, both vertically and horizontally,
in lens shift
AN-PH808EX
Position of the image when the image is
placed at the bottom vertically and is
centered horizontally in lens shift
H : Height of the image
W : Width of the image
H : Height of the image
W : Width of the image
Shift Range
Adjustable
Range
H X 50%
H
W X 10% W X 10%
W
W X 10% W X 10%
W
H
Shift Range
Adjustable
Range
: Areas on which the
image is masked with
shadow while the lens
shift function is used
•
•
Image Projection
