GETTING STARTED

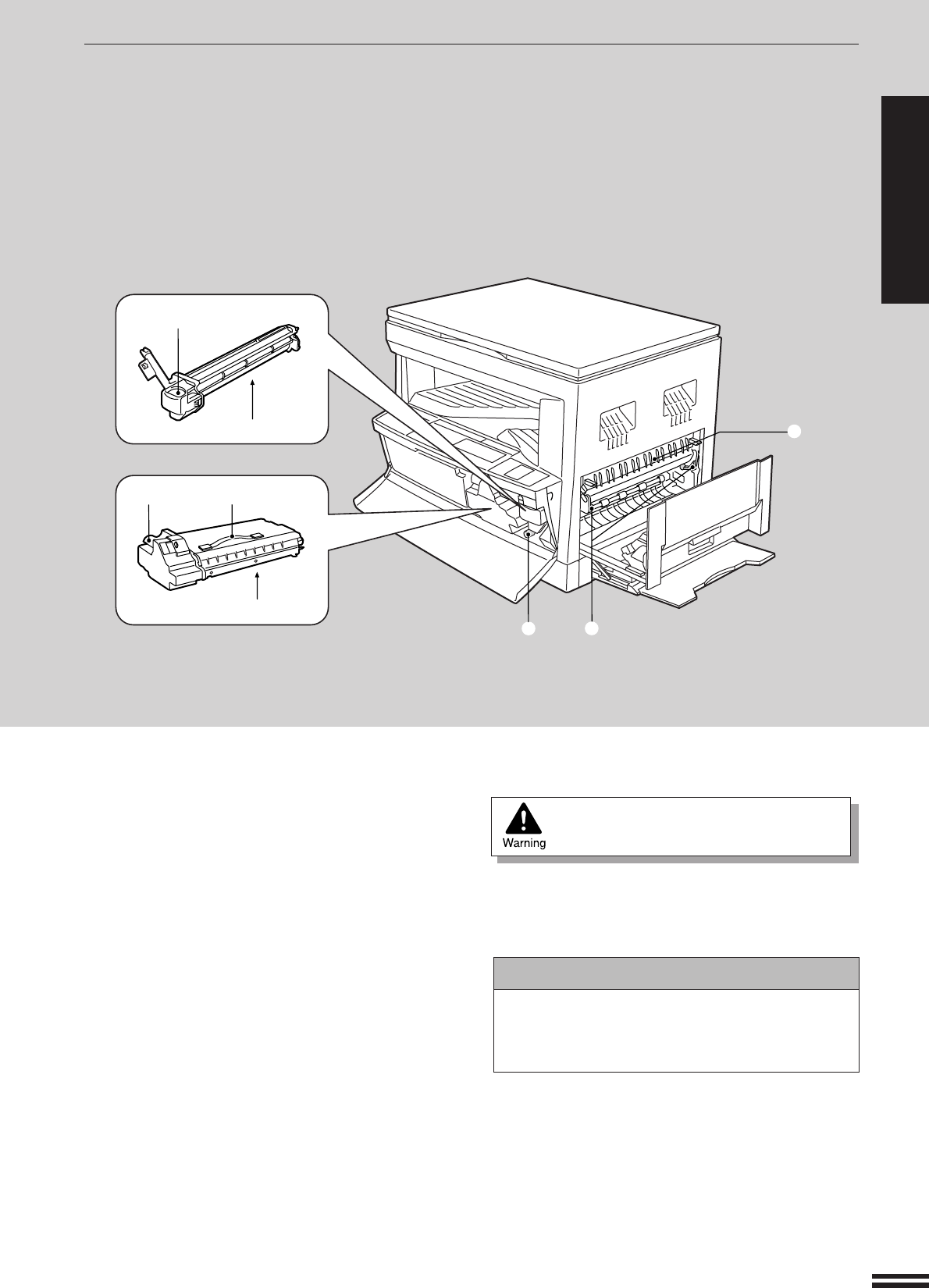

PART NAMES AND FUNCTIONS

!5 Drum cartridge handle

Hold to pull out the drum cartridge.

!6 Drum cartridge

Copy images are formed on the photoconductive drum.

!7 TD cartridge lock release lever

Use to unlock the TD cartridge.

!8 TD cartridge strap

Lift to remove the TD cartridge.

!9 TD cartridge

Contains toner.

@0 Roller rotating knob

Turn to remove misfed paper.

@0 @1

@1 Fusing unit release levers

Lower to remove misfed paper.

The fusing unit is hot.

Take care in removing paper.

@2 Paper guide

Open to remove misfed paper.

Accessories

Operation manual. . . . . . . . . . . . . . . . . . . . . . . 1

TD cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Charger cleaner . . . . . . . . . . . . . . . . . . . . . . . . 1

Part names and functions
