74xx
National Instruments Corporation 6-9 Multisim Component Reference Guide
6.4.16 74xx112 (Dual JK FF(-edge, pre, clr))
This device contains two independent J-K negative edge-triggered flip-flops.

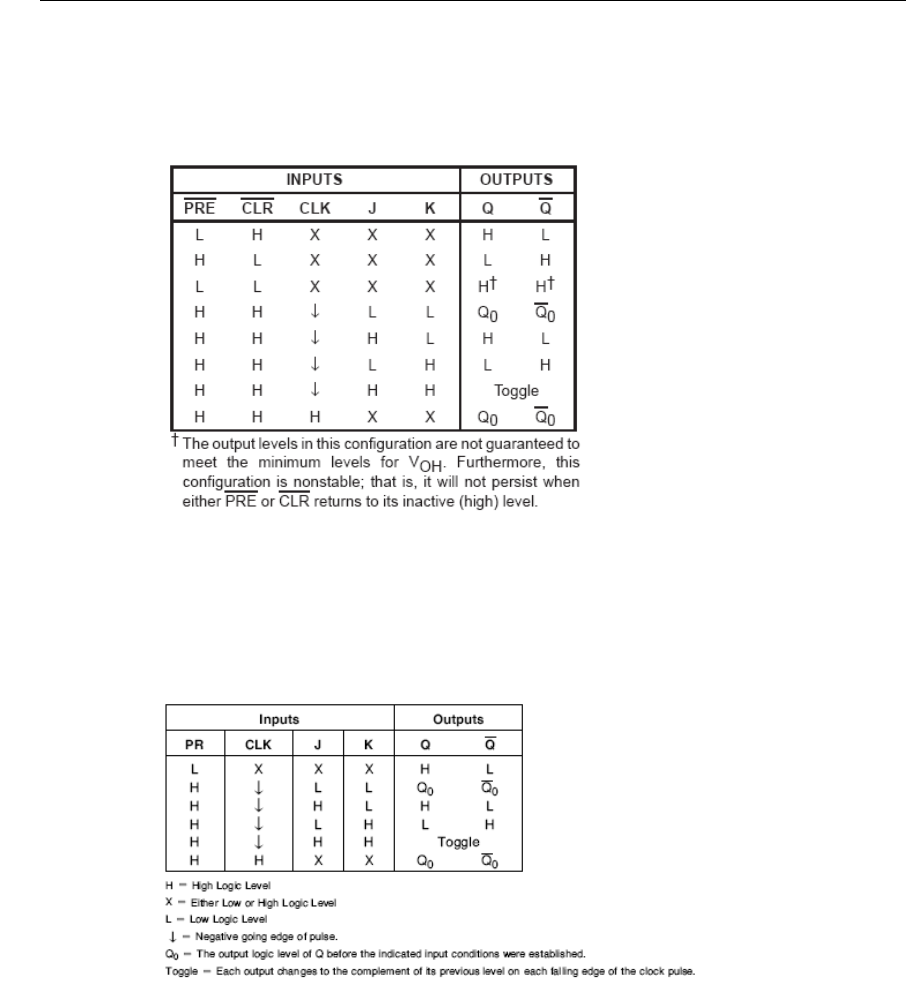

JK flip-flop truth table:
6.4.17 74xx113 (Dual JK MS-SLV FF (-edge, pre))
This device contains two independent J-K negative edge-triggered flip-flops.
JK flip-flop truth table:
ComponentRef.book Page 9 Thursday, December 7, 2006 10:12 AM
