AR-FX11 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-1

[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

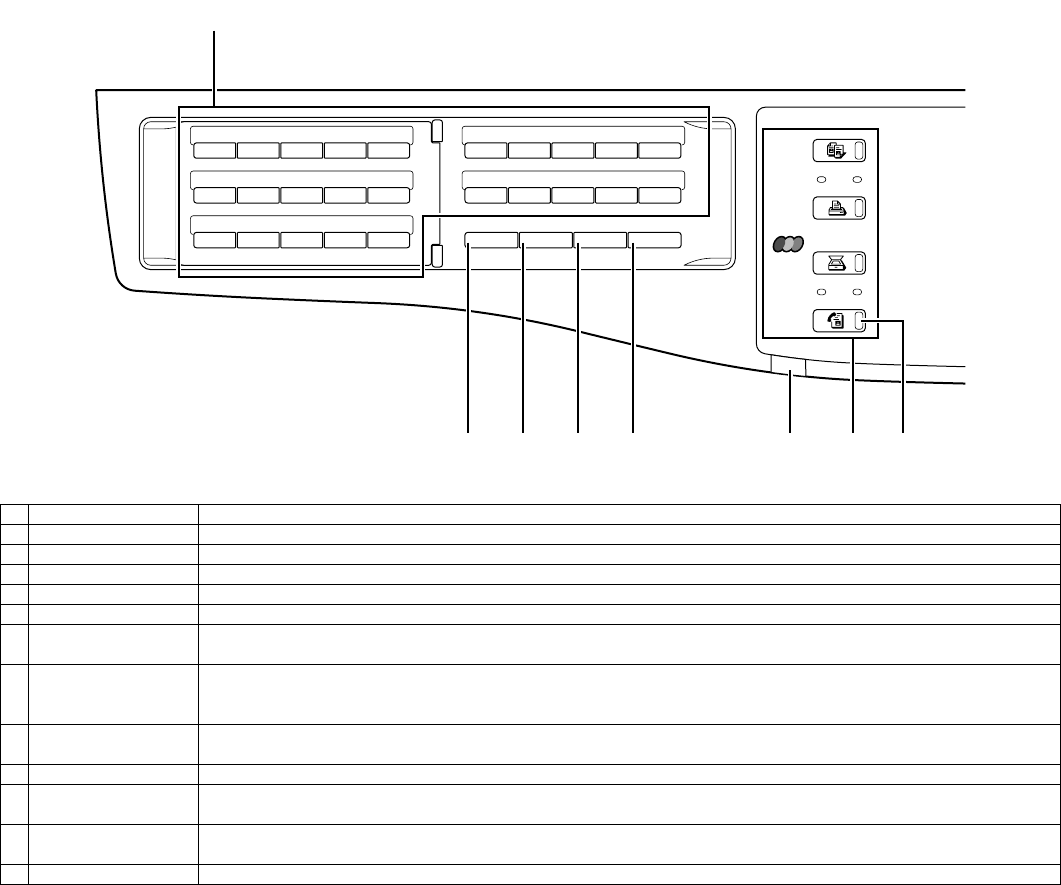

1. Operation panel

1 Page pallet These are used in fax mode.

2 Display This key displays the base screen and the function setting screen.

3 [BACK] key In a setting or programming screen, this key is used to move back to the previous screen.

4 [FAX STATUS] key This is used to cancel a fax transmission or a stored fax transmission.

5 [OK] key This key is used to enter a setting that has been selected with the arrow or other keys.

6 Numeric keys These are used to enter fax numbers, sub-addresses, passcodes, and numerical settings.

7 [C] key This is used to clear a mistake when entering fax numbers, sub-addresses, passcodes, and numerical settings. One digit

is cleared each time the key is pressed.When an original is being scanned, this key can also be used to cancel scanning.

8 [CA] key This is used to cancel a transmission or programming operation. When pressed during an operation, the operation is

canceled and the display returns to the base screen described on page *4 - 3*.This key is also used to cancel a resolution,

paper size, or special function setting that was selected when sending a fax.

9 [SPEAKER/SHIFT]

key

This is used to dial without lifting the handset and to shift between upper and lower case when entering characters.

10 [REDIAL/PAUSE] key This is used to redial the last number dialed, and enter a pause when entering a fax number.

11 [SPEED/SYMBOL]

key

This is used to dial by Speed dialing and to enter a symbol when entering characters.

12 [COMM. SETTING/

SPACE/-] key

This is used to switch between memory transmission and direct transmission, and to switch between automatic reception

and manual reception. It is also used to enter a space or "-" when entering characters.

13 Information lamp Information lamp blinks, when facsimile is received, or when the paper remains in the tray.

ON LINE

DATA

LINE

DATA

SCAN

FAX

26 27 28 29 30

31 32 33 34 35

41 42 43 44 45

46 47 48 49 50

36 37 38 39 40

ABCDE

FGH I J

KLMNO

PQR TS

U V W XYZ SP

SPEAKER

SHIFT

REDIAL/PAUSE SPEED

SYMBOL

COMM. SETTING

SPACE/–

COPY

9 101112 13 1415
