MD-R3

– 13 –

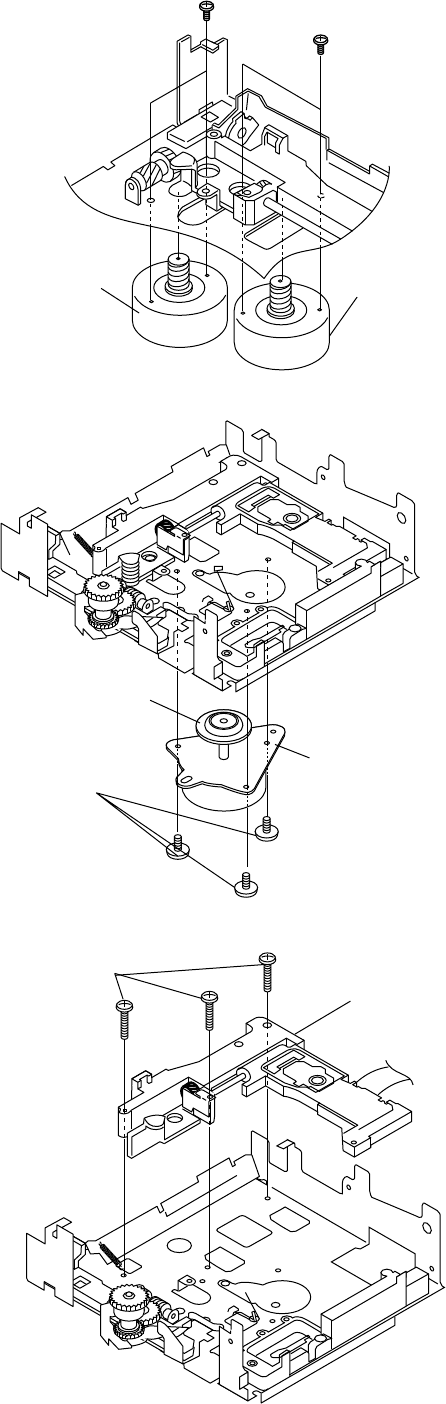

How to remove the sled motor/loading motor

(See Fig. 13-1)

1. Remove the screws (D1) x 1 pcs., and remove the sled

motor/loading motor.

Caution:

Be careful so that the gear is not damaged.

(The damaged gear emits noise during searching.)

Figure 13-1

Figure 13-2

Figure 13-3

How to remove the spindle motor

(See Fig. 13-2)

1. Remove the screws (E1) x 3 pcs., and remove the spidle

motor.

Caution:

Be careful so that the turntable is not damaged.

How to remove the optical pickup

(See Fig. 13-3)

1. Remove the screws (F1) x 3 pcs.

Caution:

Be careful so that the gear is not damaged.

(The damaged gear emits noise during searching.)

Sled Motor

Motor

(D1)x2

Ø1.7x2mm

(D1)x2

Ø1.7x2mm

Spindle Motor

Turntable

(E1)x3

Ø1.7x2.5mm

Optical Pickup

(F1)x3

Ø1.7x9.5mm
